Tarmo4 Build Kits

Lets get building with a build kit for a 3D Printed Tarmo4 RC Car! We have kits that include fasteners only as well as kits that include bearings and kits that include a servo!

Each fastener kit comes with a complete set of 155 different fasteners for the Tarmo4 including many extra screws and nuts just-in-case. The kit also includes 2 x 200mm lengths of M4 threaded rod for fastening the chassis together and one length of m3x150 threaded rod for a steering link. All screws are 304 stainless steel for enhanced corrosion resistance. Heads on most screws are cylinder head with hexagon sockets however there are a couple of hexagon head screws included for use as wheel axles. This kit also includes the screws for attaching the skull body cover with mounts and rear wing if desired.

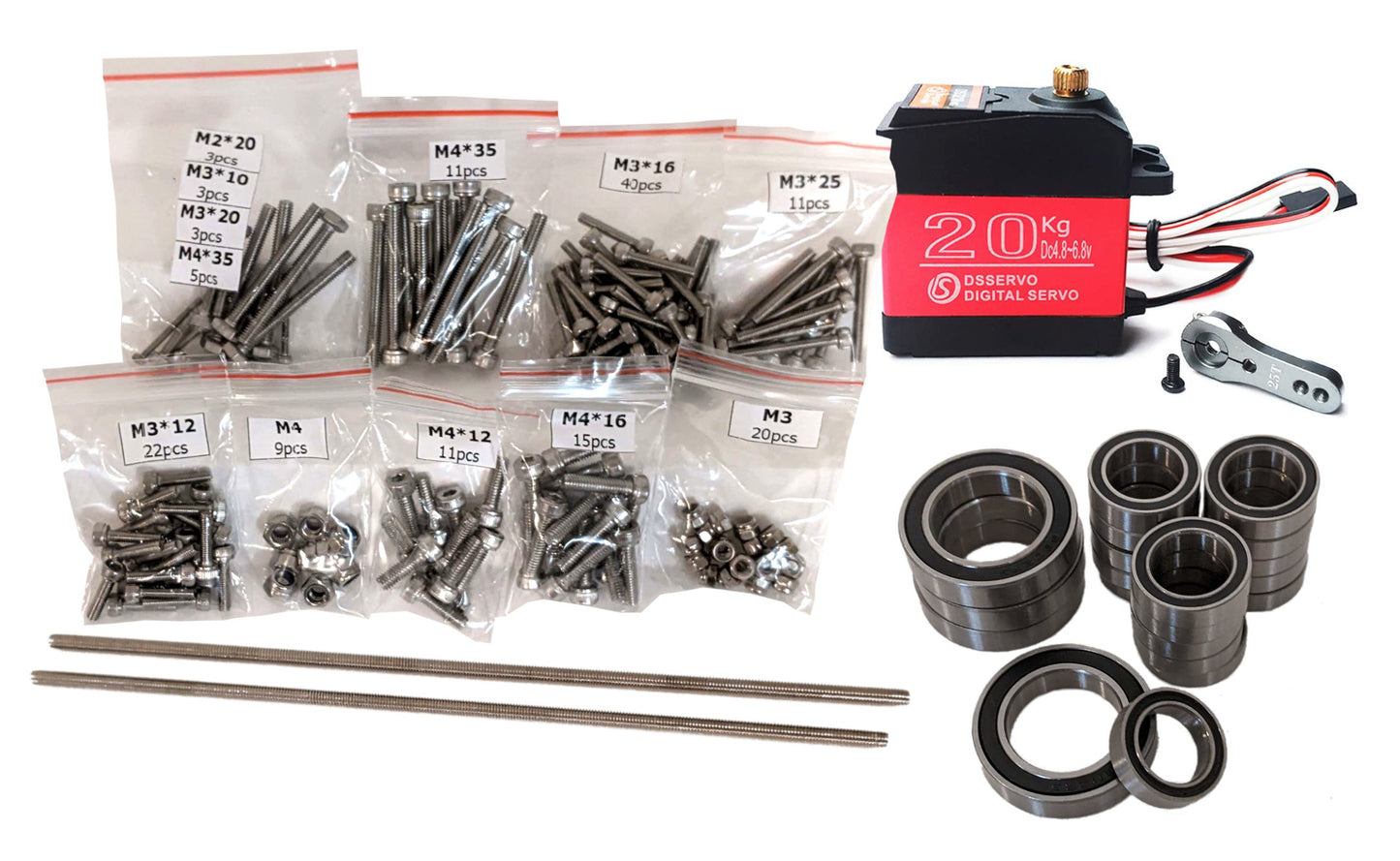

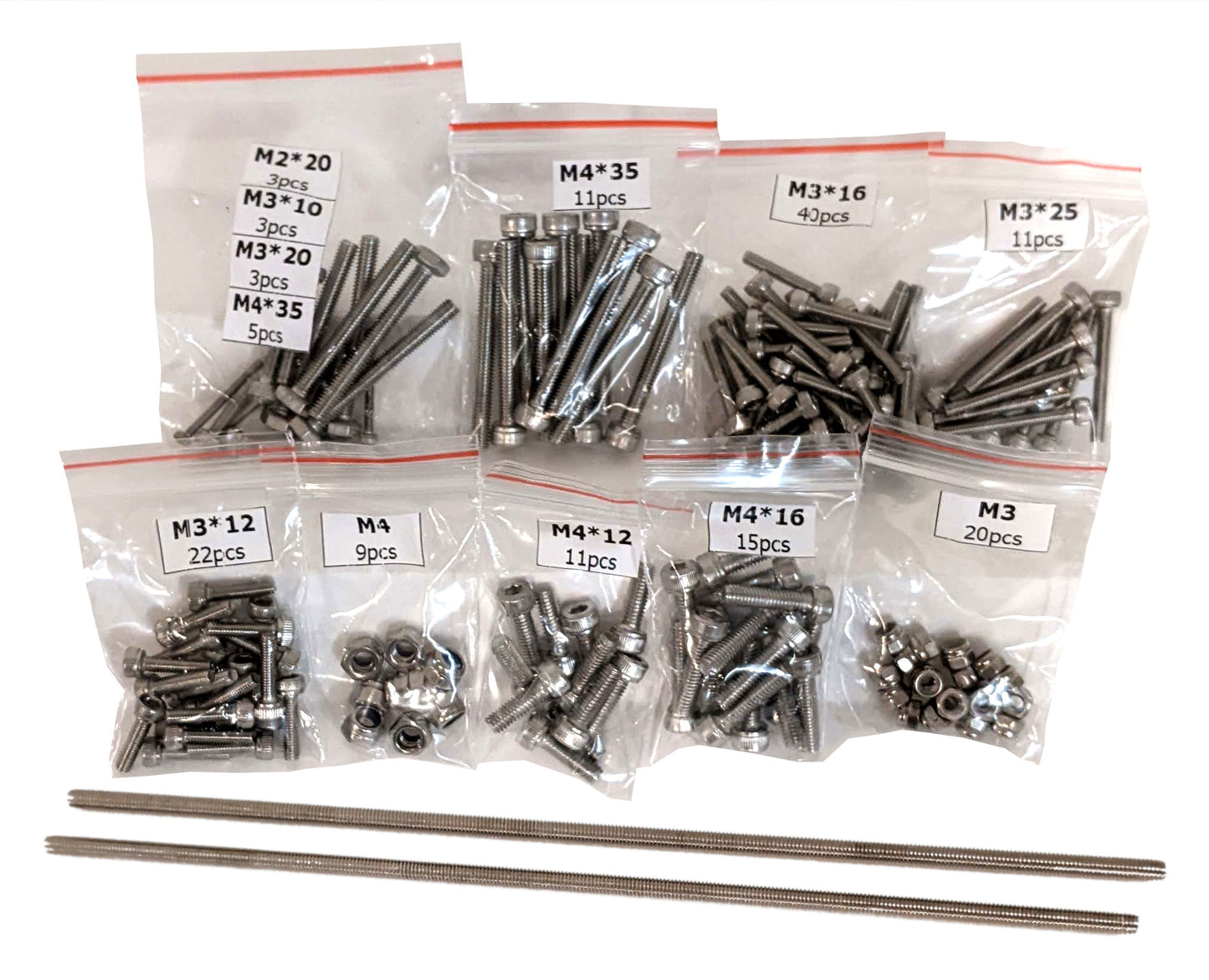

Fastener Only Kits include the following hardware:

3 - m2x20 Hex Socket Cap Head Screw
3 - m3x10 Hex Socket Cap Head Screw
22 - m3x12 Hex Socket Cap Head Screw
40 - m3x16 Hex Socket Cap Head Screw
3 - m3x20 Hex Socket Cap Head Screw
11 - m3x25 Hex Socket Cap Head Screw
11 - m4x12 Hex Socket Cap Head Screw
15 - m4x16 Hex Socket Cap Head Screw
11 - m4x35 Hex Socket Cap Head Screw
5 - m4x35 External Hexagon Head Screw
2 - m4x200 Stainless Threaded Rod
1 - m3x150 Stainless Threaded Rod
20 - m3 Nylon Insert Lock Nut
9 - m4 Nylon Insert Lock Nut
A complete listing of which screws go where can be found here.

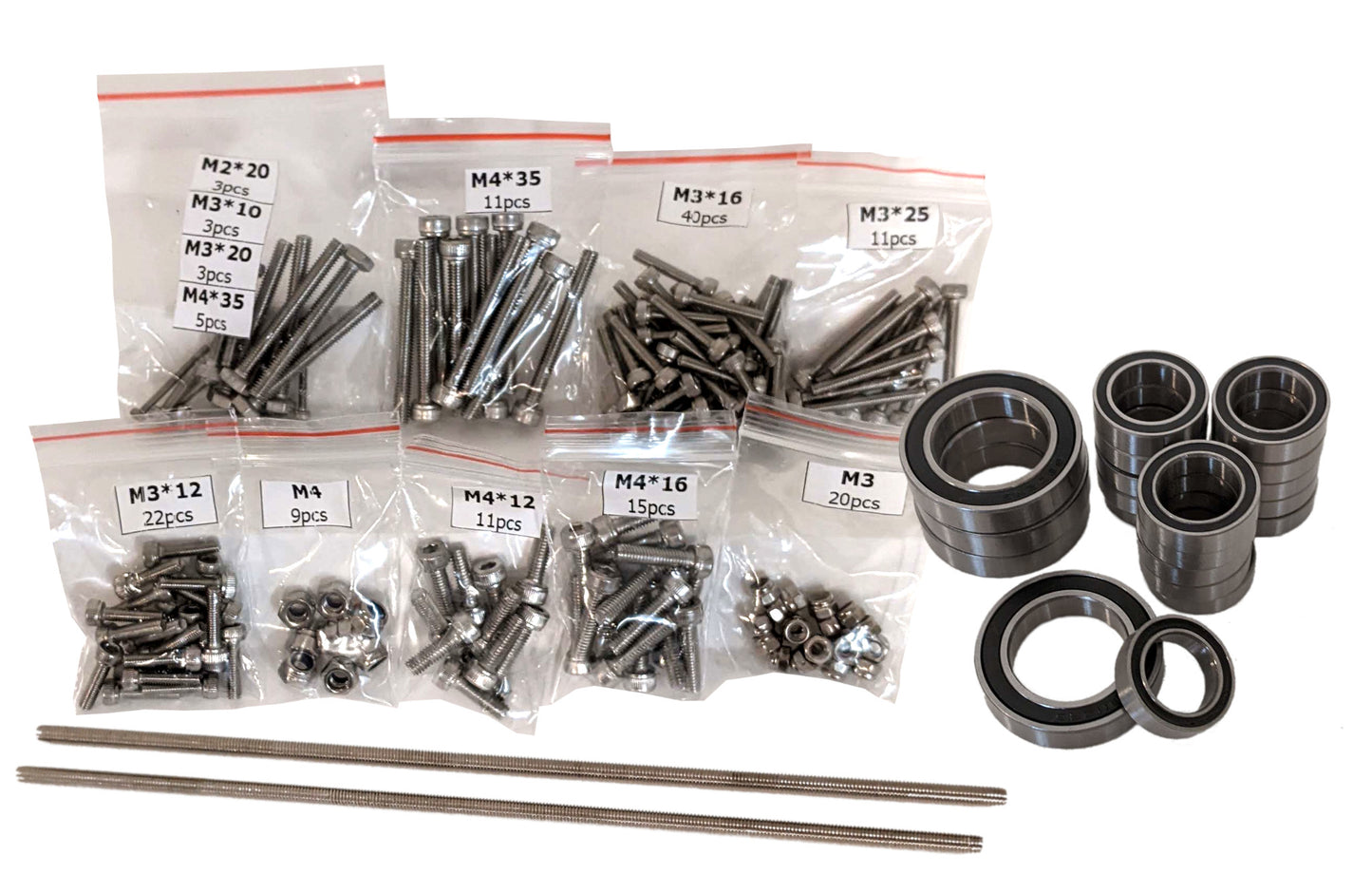

Kits with Bearings will also include a complete set of bearings for the Tarmo4. All bearings for this kit are high quality stainless steel rubber sealed bearings (2RS) with Z2 precision rating for low noise. This kit includes the following:

15 - 6700 2RS (10x15x4mm)
4 -  6802 2RS (15x24x5mm)

For kits that include a Servo we also include one 20KG Digital Servo (DS3218) with Metal Gears and a Metal Servo Arm which works well for the Tarmo4 model.

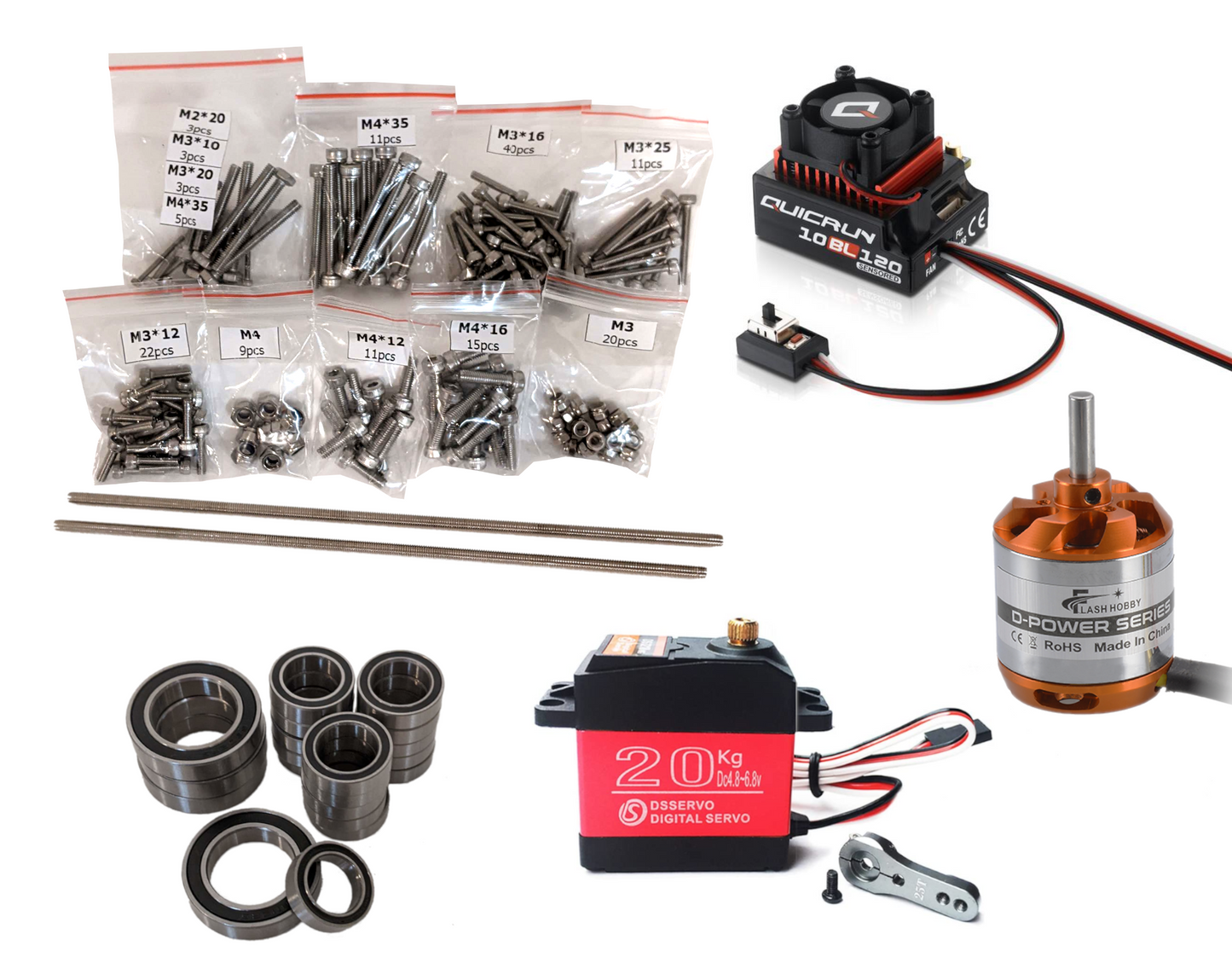

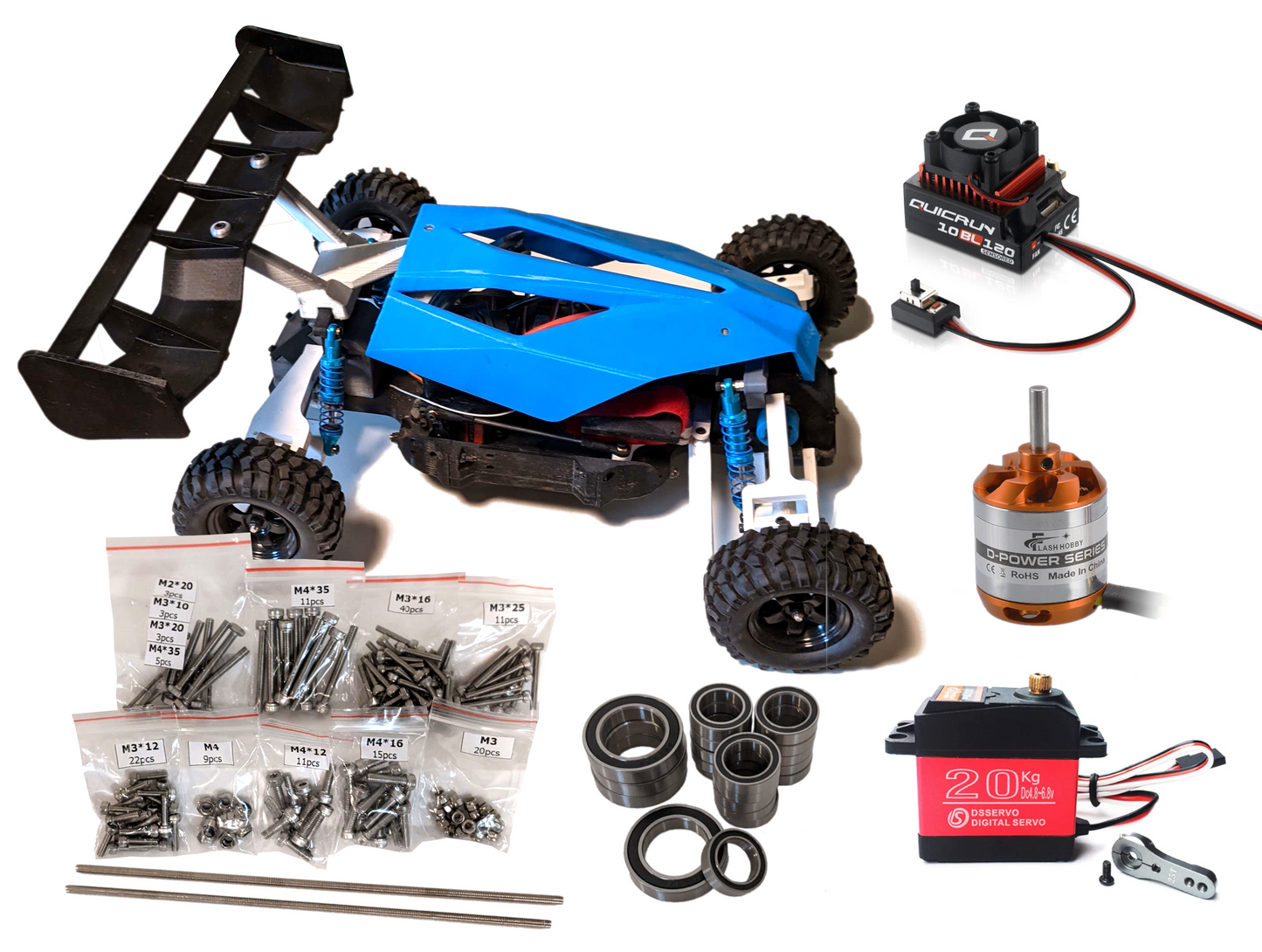

Each kit that includes Motor+ESC will include one D3542 1450KV Brushless Outrunner Motor by Flash Hobby and one 10BL120 120A Brushless ESC by Hobbywing. This is the recommended brushless motor and ESC combination for the Tarmo4.

Looking for the build files? Find them at Thingiverse here.
Looking for the mods? Find them on Github here.
Looking for shocks? Check out our selection here.

OUR KITS DO NOT COME WITH THE 3D PRINTED PLASTIC PARTS TO BUILD THE MODEL. YOU NEED TO 3D PRINT THOSE YOURSELF. OUR KITS ONLY COME WITH THE PARTS LISTED ABOVE TO ASSIST YOU IN YOUR BUILD AND OTHER PARTS WILL LIKELY BE REQUIRED TO COMPLETE YOUR BUILD.
