Robak 2 Build Kits
Robak 2 Build Kits

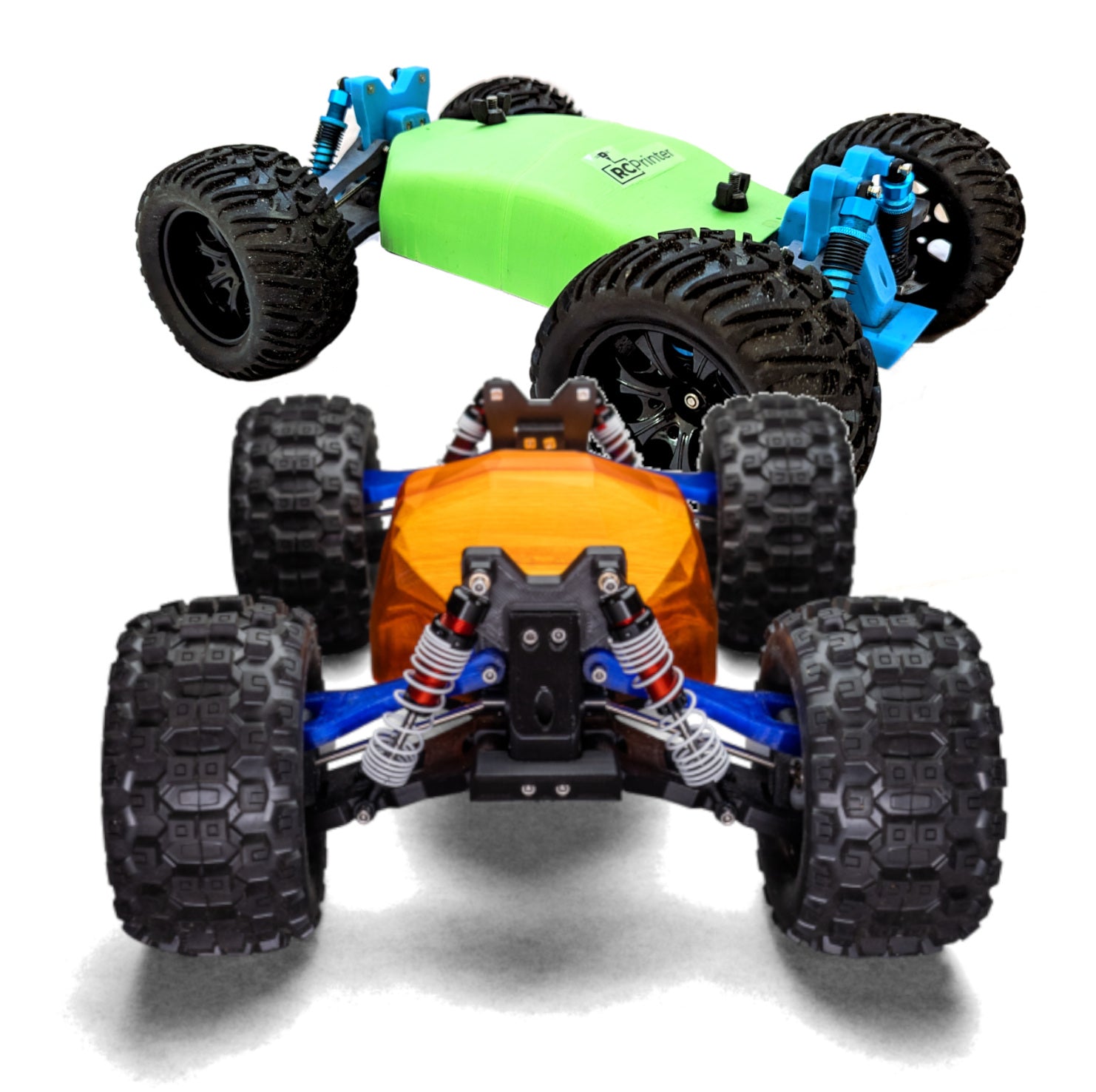

Make your RC printing dreams come true with a build kit for the Robak 2 remote control (RC) truck. The Robak 2 is a serious bashing machine with an all metal drivetrain, massive 5" tires and a go-anywhere at anytime attitude. This is a build kit for the 2nd generation of the Robak and includes all the hardware for the v2.1.0 updates if you desire to print those as well. We have kits that include fasteners only as well as kits that include bearings, servos, motors, ESCs and all the HSP bits required to make it come to life.

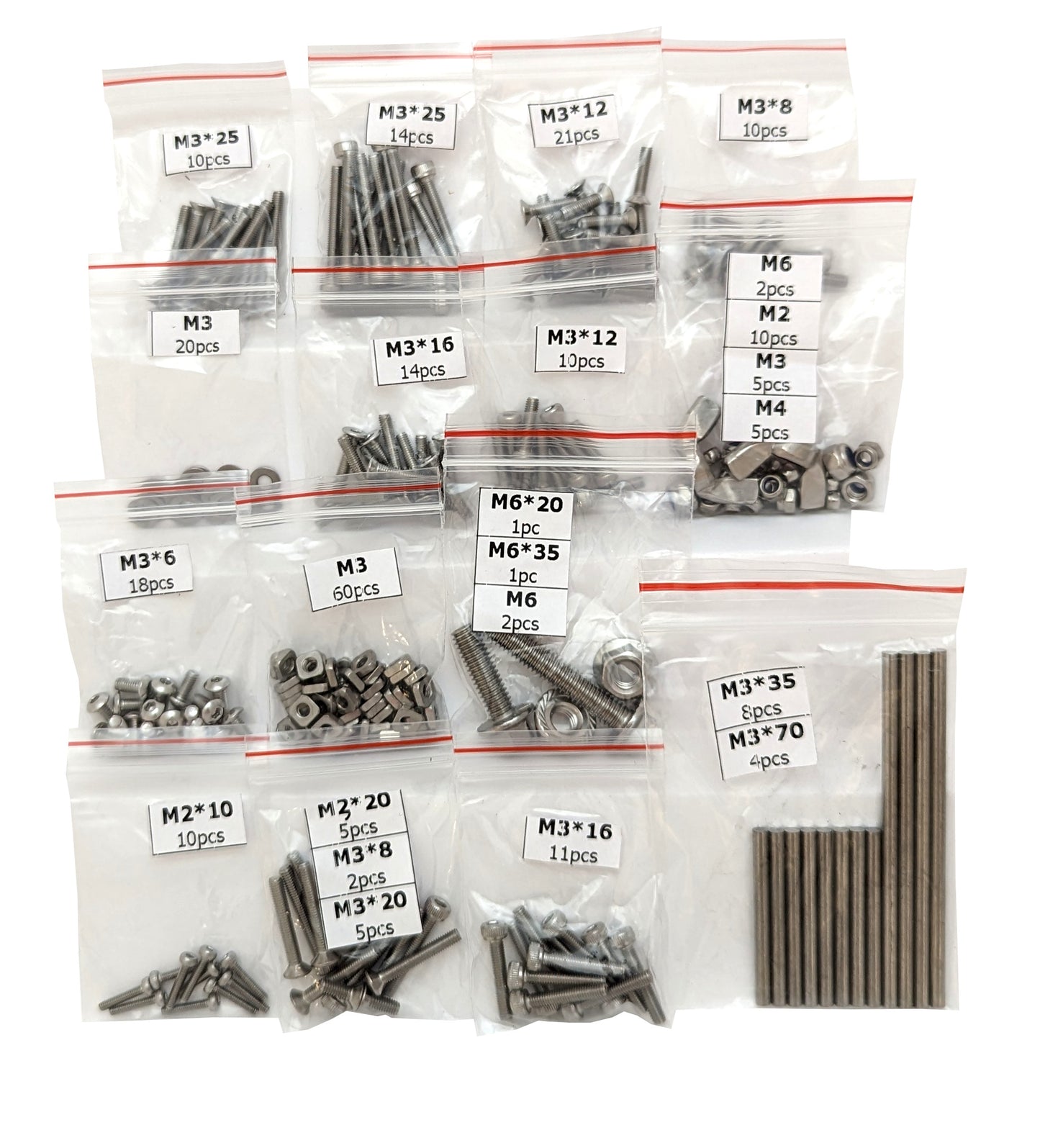

Each Fastener Kit comes with a complete set of ~250 different screws, nuts, washers and metal rod required to build the vehicle. Our kit includes 12 pieces of pre-cut m3 smooth steel rod in 35 and 70mm lengths required to build the vehicle so you don't have to worry about cutting it yourself. All fasteners for this kit are made with 304 stainless steel for enhanced corrosion resistance. Heads on most screws are cylinder head with hexagon sockets however there are a few m6 hexagon flange head screws included for the optional cover securing with m6 wing nuts. (also included).
A complete listing of which fasteners are required for the build and where they should go can be found here. We also include extra screws just in case.

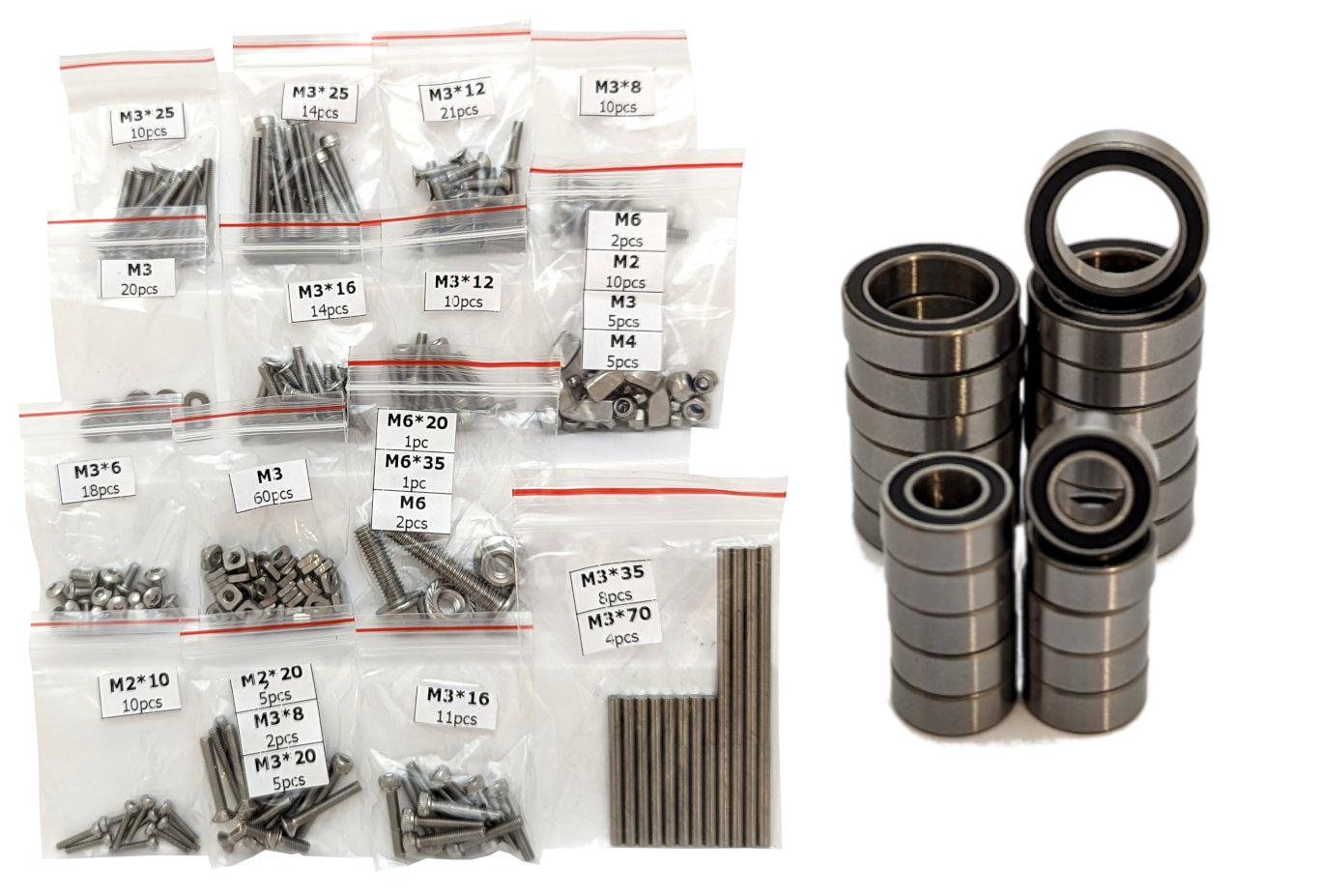

Kits with Bearings will also include a complete set of bearings for the Robak 2 3D Printable RC Truck. All bearings for this kit are high quality stainless steel rubber sealed bearings (2RS) with Z2 precision rating for low noise. We include 1 more bearing of each size than is required in the build, just in case. This kit includes:
13 - 6700 2RS (10x15x4mm) bearings
10 - MR105 (5x10x4mm) bearings

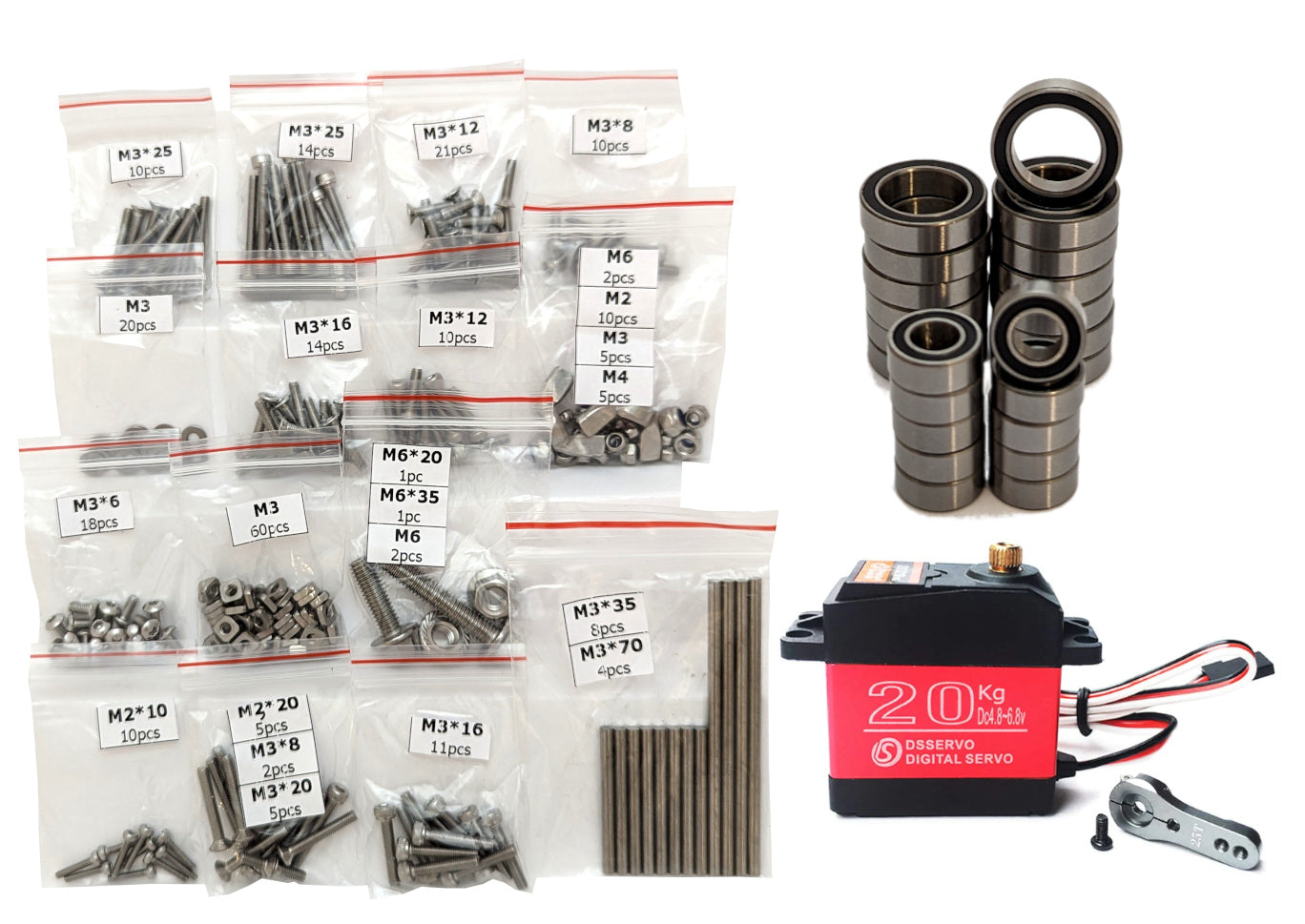

For kits that include a Servo we also include one 20KG Digital Servo (DS3218) with Metal Gears and a Metal Servo Arm which works well for the Robak 2 model.

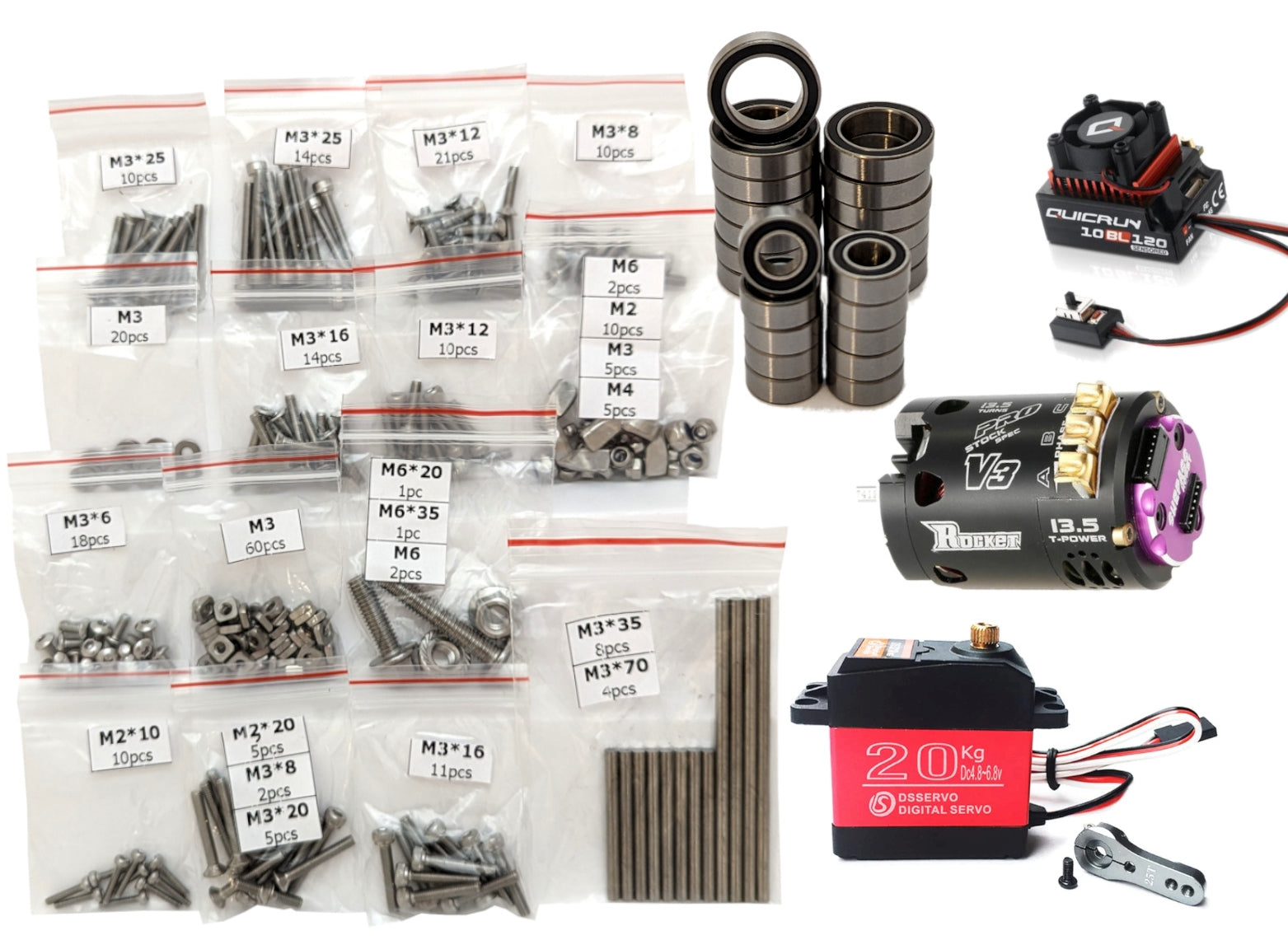

Each kit that includes Motor+ESC will include one 540 Brushless Sensored 13.5T Rocket V3 Motor by Surpass Hobby and one 120A Sensored Brushless ESC (10BL120) by Hobbywing. This motor and ESC combo meets the designers recommendations for this model and from our testing pairs best with an 17t pinion which is included in the HSP Parts section below.
Each kit that includes HSP Parts will include a complete set of all HSP Parts required to make your Robak 2 come to life:
|4||5" wheels/tires||HSP 88005|
|4||1/10 shocks (blue)||HSP 108004|
|6||ball head screws||HSP 06007|
|2||metal differentials||HSP 02024|
|1||front gear||HSP 02030|
|1||rear gear||HSP 03015|
|4||CVD driveshafts||HSP 108015|
|4||wheel hex||HSP 122042|
|2||universal cups||HSP 02016|
|1||servo link arm||HSP 02012|
|2||steering link arms||HSP 06016|
|1||1 drive shaft||HSP 04003|
|1||64T spur gear||HSP 11184|
|1||17T pinion gear||HSP 11181|
|6||ball head screws||HSP 02038|
|5||gear/wheelhex pins||HSP 08027|
Looking for the build files? Find them on Robaki.dev or on Printables.
OUR KITS DO NOT COME WITH THE 3D PRINTED PLASTIC PARTS TO BUILD THE MODEL. YOU NEED TO 3D PRINT THOSE YOURSELF. OUR KITS ONLY COME WITH THE PARTS LISTED ABOVE TO ASSIST YOU IN YOUR BUILD.
