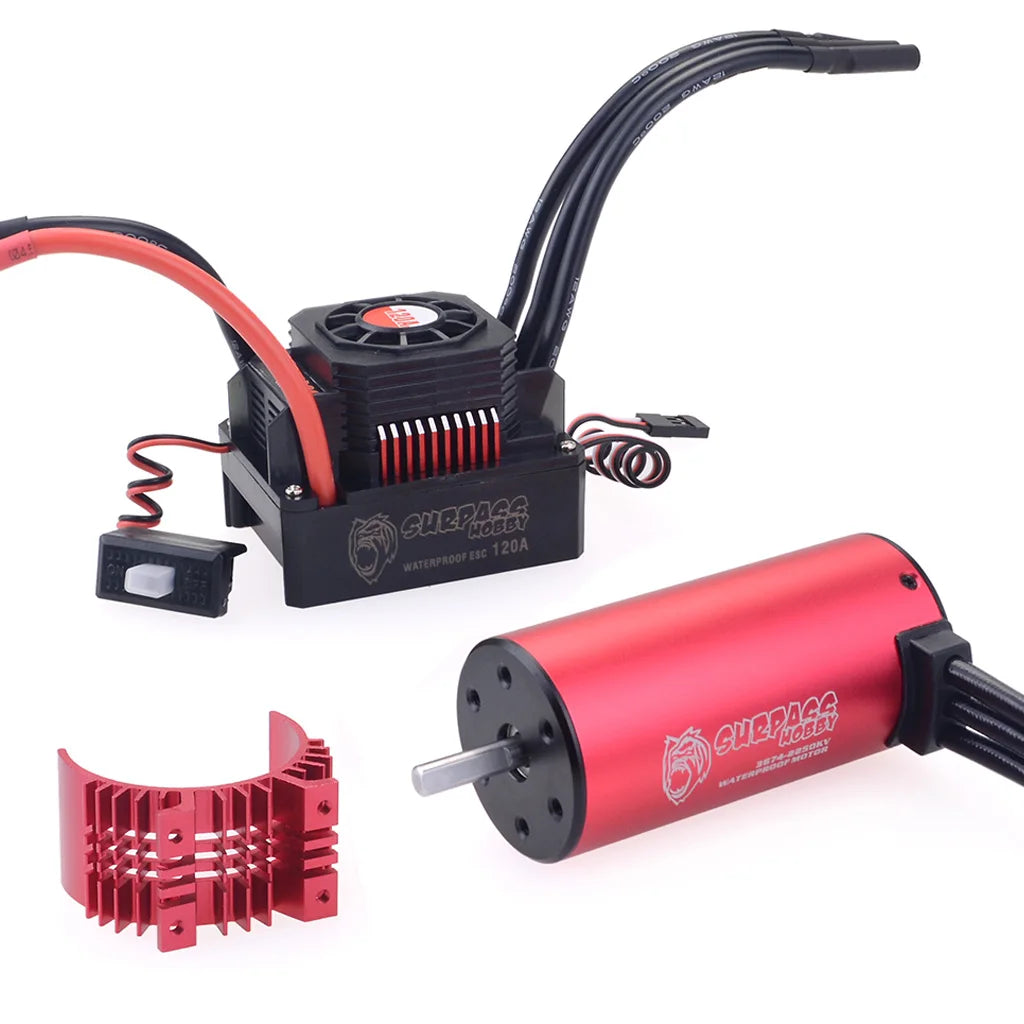

Surpass Hobby 3674 Brushless Motor 2250kv with 120A ESC Sensorless Combo

Surpass Hobby 3674 Brushless Motor 2250kv with 120A ESC Sensorless Combo

Regular price $125.99 USD
Regular price Sale price $125.99 USD
Save! Sold out
Shipping calculated at checkout.

Brushless motor and ESC combo kit (1/8 scale) by Surpass hobby including a waterproof 3674 inrunner RC motor and 120A ESC. This is a great combo for sensorless RC applications where the size required is a bit larger than a standard 3650 (540) motor. This kit is a great budget option for a project such as the Skeeride 2. The motor comes stock with a red aluminum heat sink which can help in applications where the motor may become hotter than desired. The motor is equipped with a 5mm thick driveshaft to withstand the additional strain larger scale RC vehicles might put on it.

ESC and Motor are waterproof and dustproof for all-weather performance. The ESC includes low voltage cut-off protection for lithium or nickel batteries as well as overheat protection. No soldering is required to connect the motor and ESC and the ESC comes equipped with a  very common T plug (Deans) for connection to the battery. To program the ESC for you will also require a Surpass Hobby KK ESC Series LED Programing Card.

Motor Specifications:
Brand name: Surpass Hobby
Series: KK
Color: Red and Black
Name: Name: 3674 RC Motor
Speed: 2250kv
Input voltage: 2-6s Lipo <22.2V
Rotor poles: 4
Motor Size: Approx. 36 * 73mm
Length of extend shaft: 17mm
Shaft diameter: 5mm
Motor Weight: 298g

ESC Specifications:
Brand: Surpass Hobby
Name: KK 120A ESC
Cont.Current/Burst Current: 120A/600A
Motor Type: Sensorless Brushless Motor
Resistance: 0.00035ohm
Battery: 3-6S Lipo/9-18Cells NiMH
BEC Output: 6.1V/3A (Switch mode)
Dimensions/Weight: 160x100x62mm/135g
Plug Types: T Plug (Deans)

Package Includes:
1 * SURPASSHOBBY KK 3674 Brushless Motor 2250kv
1 * SURPASSHOBBY Waterproof 120A ESC (T Plug)
1 * Heat Sink
1 * English Manual
