Micro Servo - Metal Gear 9G MG90S

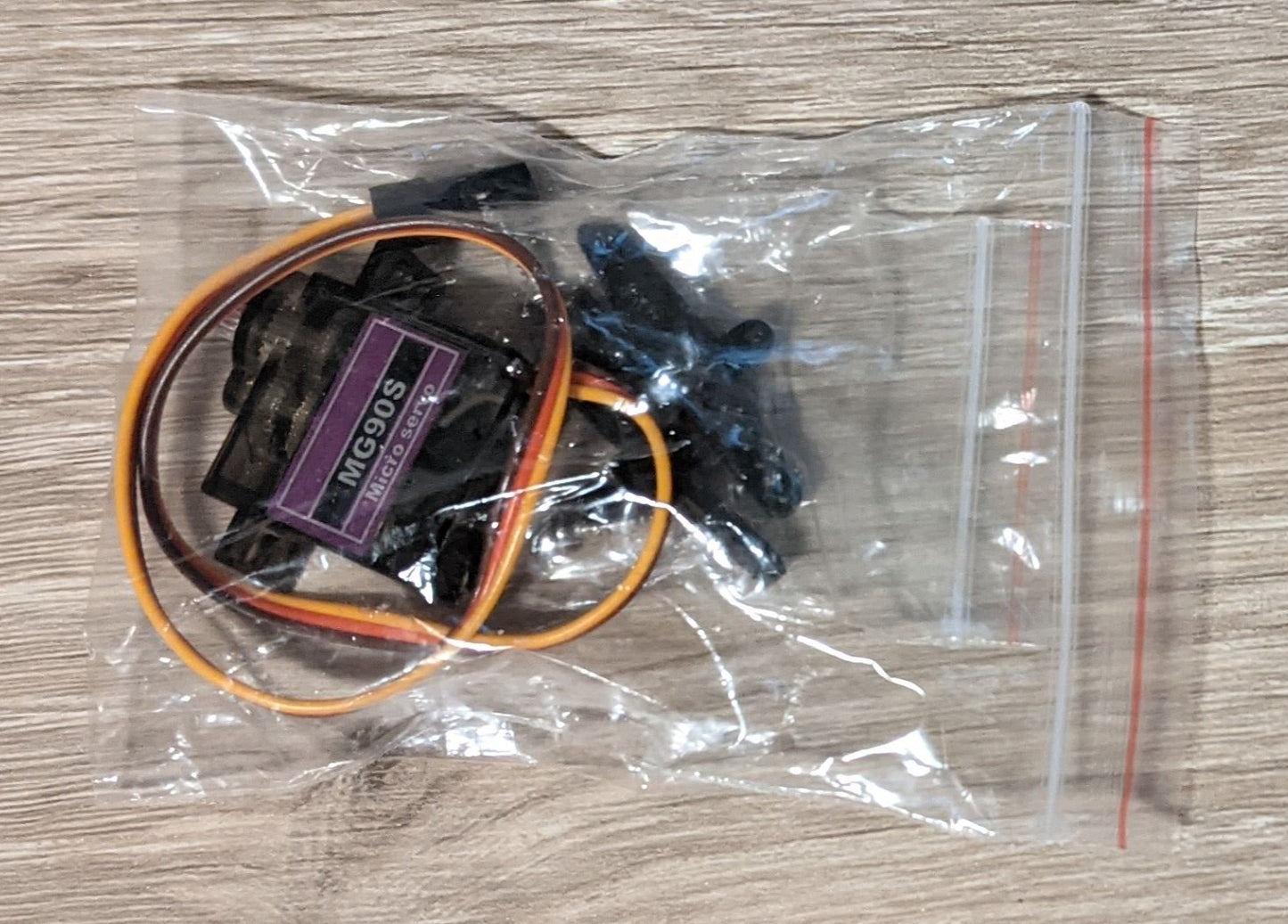

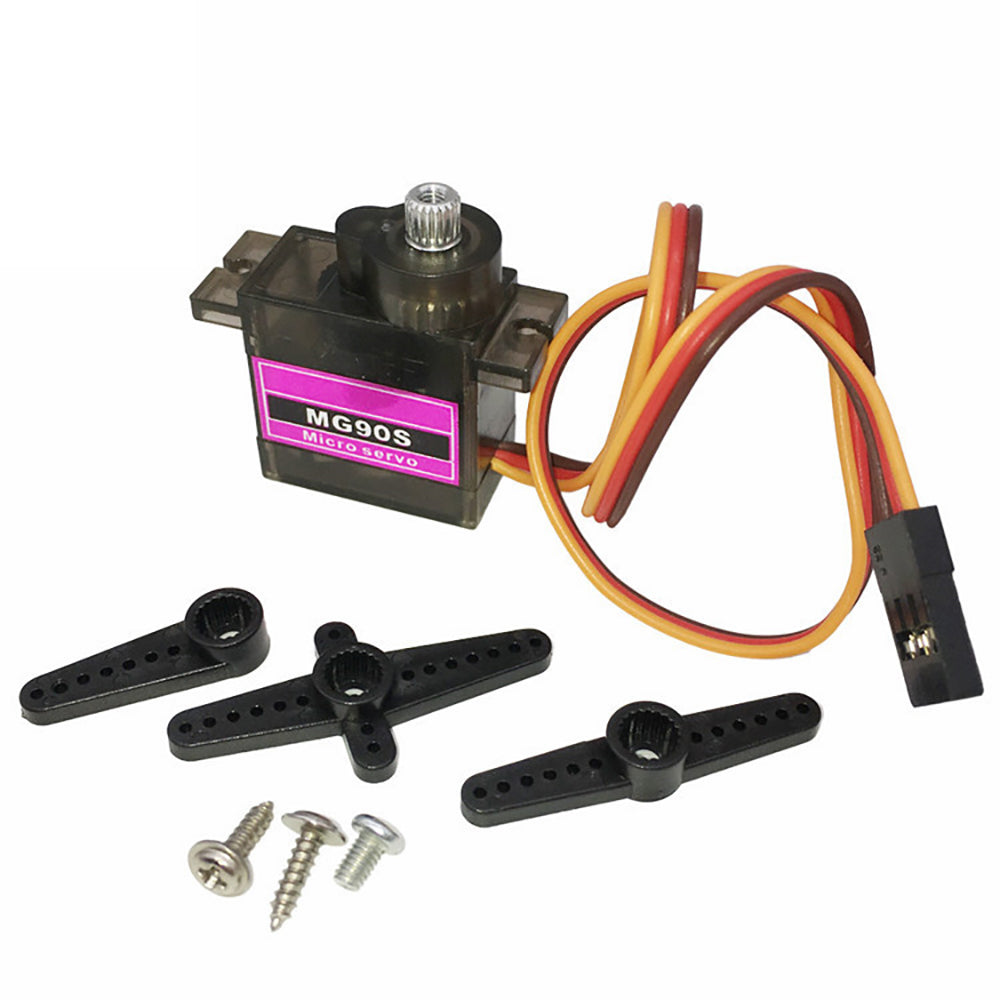

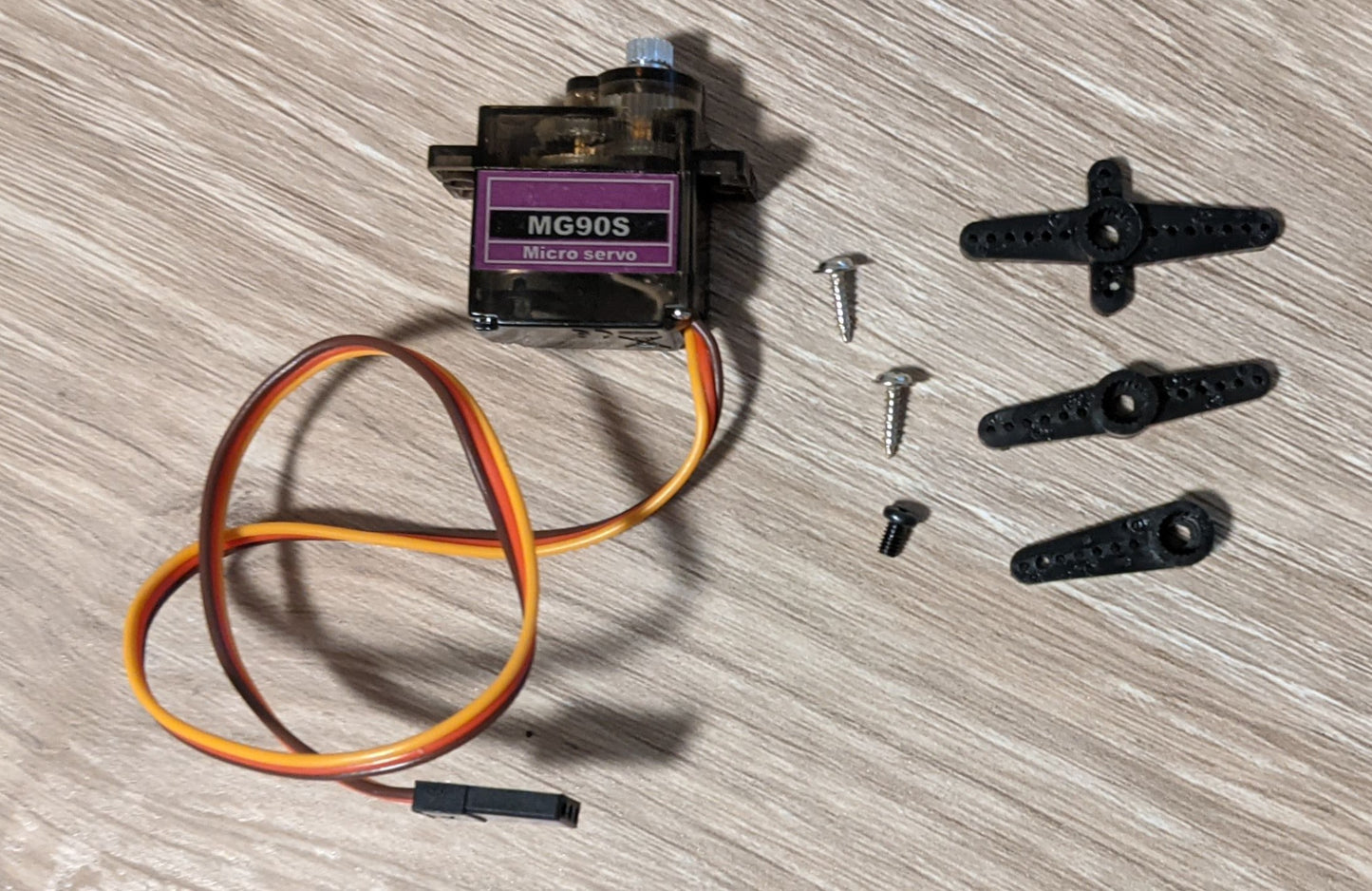

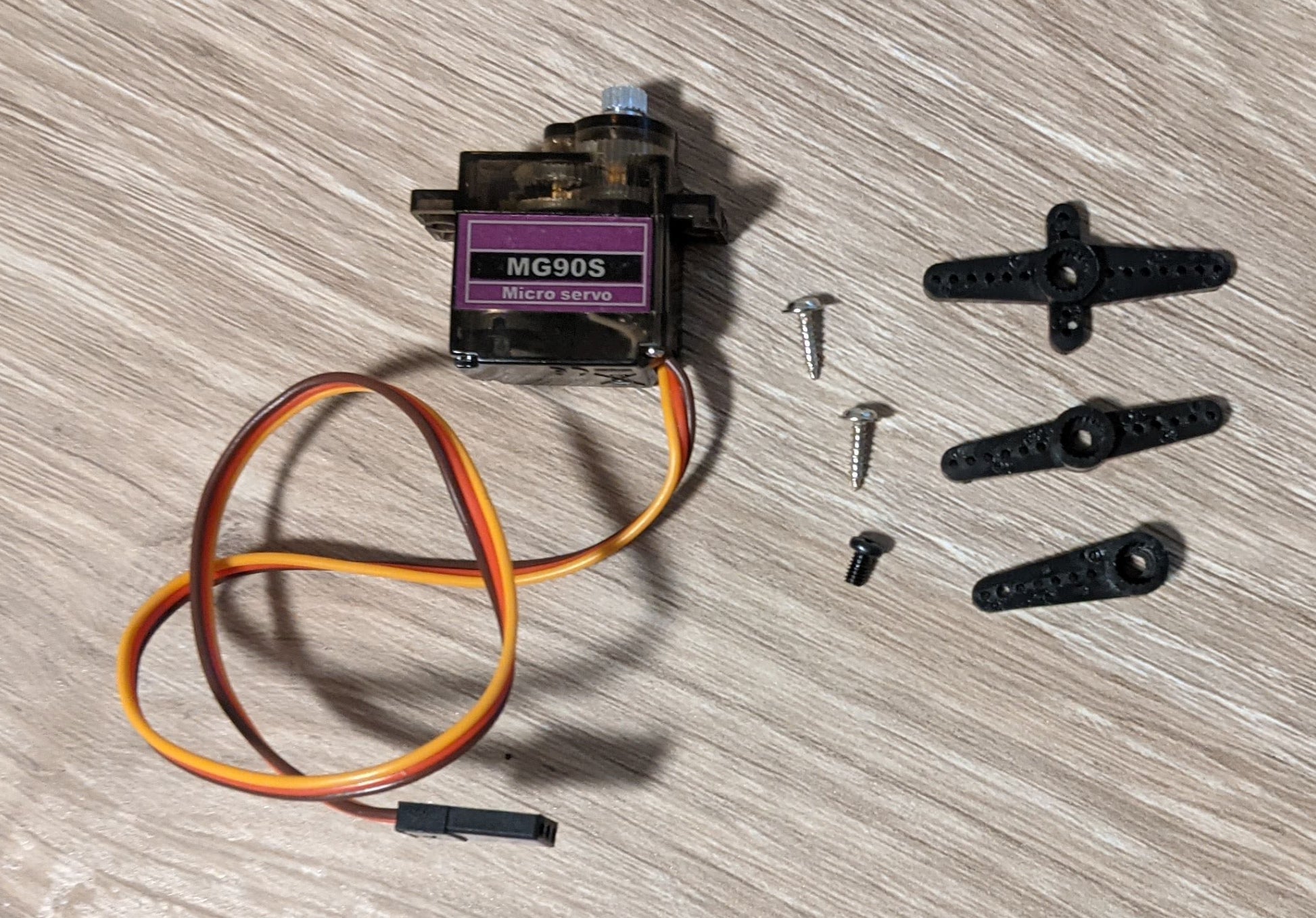

9G Micro Servo with metal gears perfect for smaller RC applications such as the OpenRC F1 or OpenRC Tractor and many other models. Servo comes with a small assortment of plastic arms and mounting screws as per the pictures.

Model: MG90S
Weight: 13.5g
Dimensions: 22.6x12x22.5mm
Product size: 22.4x12 5x22. 8mm
Working voltage: 4.8v-6v
No load speed: 0.12sec/60 ° (4.8V) / 0.09sec/60 ° (6V)
No load current: 220mA
Locked rotor torque: 1.8kg cm(4.8V) / 2.0kg. cm(6V)
Locked rotor current: 750mA ± 10% (4.8V) / 860mA ± 10% (6V)
Control signal: pulse width modification
Pulse width: 500 ~ 2500usec
Rotation angle: 180 ° (when 500 ~ 2500usec)
