M-Jet 35 Pump Build Kits

Elevate your boating experience with the M-Jet 35 Jet Boat Pump—designed for power and performance. Capable of propelling boats up to 80 cm long and 6 kg, this standalone pump is your gateway to thrilling water adventures. While it doesn’t include a hull, the M-Jet 35 is compatible with a variety of models, including:

1. Ragnarok
2. Valkyrie RC Jetski
3. 4G Hull
4. Bash Jet, Speed Jet or Cruz Jet by Vassa Designs

You can also adapt it to any hull featuring a flat plate stern, provided it meets the dimensions outlined in the build guide.

Innovative Design
After a year of rigorous development and over 100 design iterations, the M-Jet 35 stands out with enhanced thrust, exit velocity, efficiency, and power consumption. Key improvements include:

• Single Blade Impeller: This innovative design boosts efficiency while maintaining exceptional two-stage priming capabilities, complemented by a built-in counterweight for balance.
• 4-Path Nozzle: Shortening the pump assembly and increasing durability, this feature optimizes flow for maximum efficiency, offering precise steering control with minimal backlash.


Kit Options:
Choose from several M-Jet 35 kit options to suit your needs:

• Hardware Only
• Aluminum Impeller Only
• Aluminum Laser Cut Items Only
• Hardware/Impeller/Laser Cut Items

Hardware Only Kit
This kit includes all essential components to assemble the M-Jet 35 Pump, including:

40+ stainless steel screws/nuts/washers (various)
16 - m3x5.7x4.6 threaded brass heat set inserts
1 - m5x124 smooth stainless rod
1 - m5x130 smooth stainless rod
2 - m3x38 smooth stainless rod
1 - m3x22 smooth stainless rod
2 - 3x4mm x25mm brass tube
2 - FKM rotary shaft oil seal 5x15x6mm
1 - 5mm to 5mm brass motor coupler
1 - 5x13x4mm stainless steel bearing
1 - 5x19x6mm stainless steel bearing
2 - O-ring 36x40x2

Crafted from 304 stainless steel, our fasteners and bearings ensure superior corrosion resistance, while all screws feature metric sizes with hexagonal drive sockets. Rods come pre-cut, but you’ll need to grind flat spots as per the build guide.

Aluminum Impeller Only Kit
This kit features a 3D printed aluminum impeller made using Selective Laser Melting (SLM). It arrives in a matte finish which is perfectly functional but could also be ground or burnished to a shine if you desire. Minor imperfections from the printing process are normal and won’t impact performance.

Aluminum Laser Cut Items Only Kit
This kit provides a raw laser-cut intake grate and a ride plate made from durable 2mm aluminum sheet metal. As raw blanks, these pieces will need some finishing work, including drilling recesses for screw heads and annealing and bending as per the build instructions. Minor imperfections from the laser cutting process are typical but can be easily corrected with a file.

Looking for the build files? Buy them here.
Need a controller? Try the FlySky GT5.

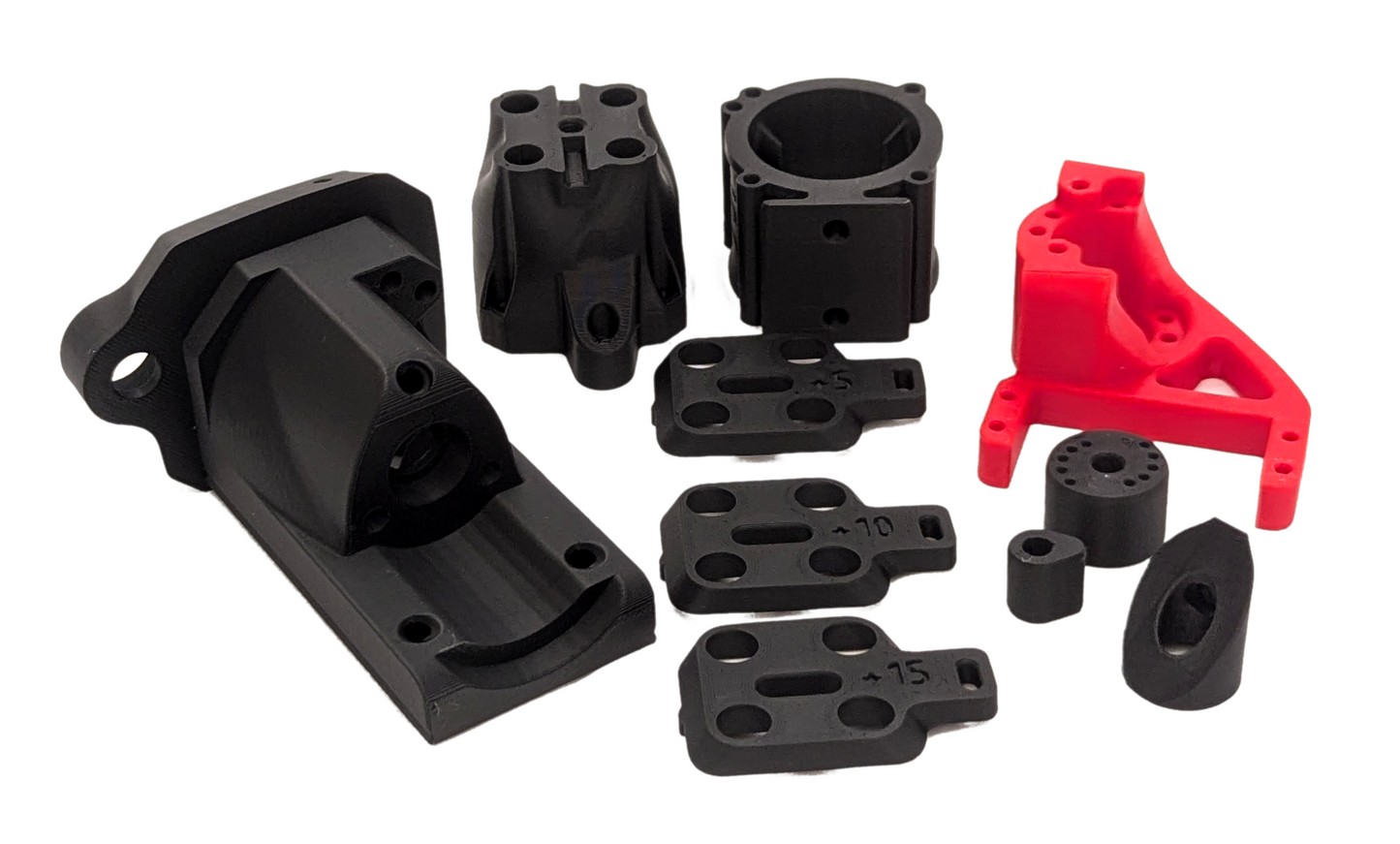

OUR KITS DO NOT COME WITH THE 3D PRINTED PLASTIC PARTS TO BUILD THE MODEL, YOU NEED TO 3D PRINT THOSE YOURSELF. OUR KITS ONLY COME WITH THE PARTS LISTED ABOVE TO ASSIST YOU IN YOUR BUILD AND OTHER PARTS WILL LIKELY BE REQUIRED TO COMPLETE YOUR BUILD.
