M-Jet 30 Pump Build Kits
M-Jet 30 Pump Build Kits
Unleash the potential of your RC boat with the NEW M-Jet 30 Jet Boat Pump, inspired by the acclaimed M-Jet Supersprint. Perfectly suited for RC hulls measuring 35-55 cm, this pump is engineered for performance and versatility. The latest iteration features an advanced 2-stage configuration, a single blade impeller, and a 4-path nozzle with quick-swap vertical trim, ensuring superior handling and agility.
Designed for easy installation at the rear of your RC hull, the M-Jet 30 is compatible with the free Ragnarok, Valkyrie, and 4G Sprint Hull designs, and can seamlessly integrate into a wide range of other hulls.
Kit Options
Choose from three tailored kit options to best suit your needs:
- Hardware Only
- Electronics Only
- Hardware and Electronics
Hardware Only Kit
Our Hardware Only kit provides all the essential components to build the M-Jet 30 Pump, including:
30+ stainless steel screws/nuts/washers (various)
12 - m3x5.7x4.6 threaded brass heat set inserts
1 - m5x119 smooth stainless rod
1 - m5x112 smooth stainless rod
2 - m3x38 smooth stainless rod
1 - m3x22 smooth stainless rod
1 - m3x62 smooth stainless rod
3 - 3x4mm x25mm brass tube
2 - FKM rotary shaft oil seal 5x15x6mm
1 - 5mm to 5mm brass motor coupler
2 - 5x13x4mm stainless steel bearings
All fasteners and bearings are crafted from durable 304 stainless steel for exceptional corrosion resistance. The screws feature metric sizes with hexagonal drive sockets for ease of installation. While the rods are pre-cut, you may need to grind flat spots in specific locations as detailed in the build guide.

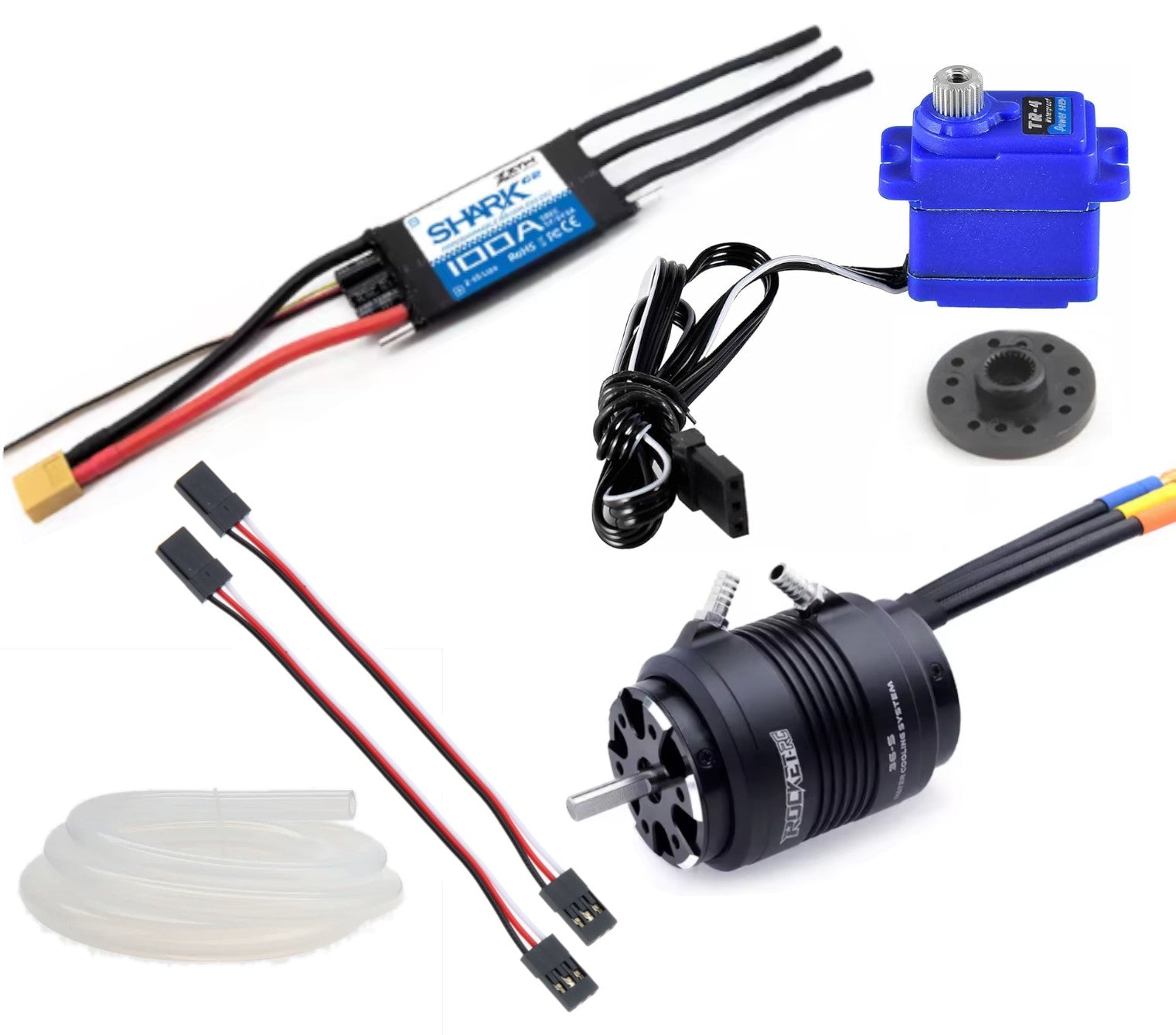

Electronics Only Kit
The Electronics Only kit includes vital electronic components and water cooling parts designed for the M-Jet 30. Please note that batteries, controllers, and receivers are sold separately, so be sure to confirm compatibility with your existing setup. The Electronics kit features:
1 - PowerHD TR-4 Waterproof Metal Gear Micro Servo 2.6KG (link)
1 - 20mm Circular Servo Arm
2 - 10cm 22AWG Servo Extension cables
1 - ZTW Shark G2 100A Brushless ESC (water-cooled with XT60 + 4mm banana plugs)
1 - Surpass Hobby 2150KV Rocket RC 3660 Brushless Boat Motor (5.0mm drive shaft and 4mm banana plugs)
1 - Surpass Hobby Rocket RC 3660 Water Cooling Jacket (36-S)
60cm (2') - 3x5mm Silicon Water Cooling Tube
Looking for the build files? Buy them here.
Need a controller? Try the FlySky GT5.
OUR KITS DO NOT COME WITH THE 3D PRINTED PLASTIC PARTS TO BUILD THE MODEL, YOU NEED TO 3D PRINT THOSE YOURSELF. OUR KITS ONLY COME WITH THE PARTS LISTED ABOVE TO ASSIST YOU IN YOUR BUILD AND OTHER PARTS WILL LIKELY BE REQUIRED TO COMPLETE YOUR BUILD.
