Casadio Impr3za Build Kits

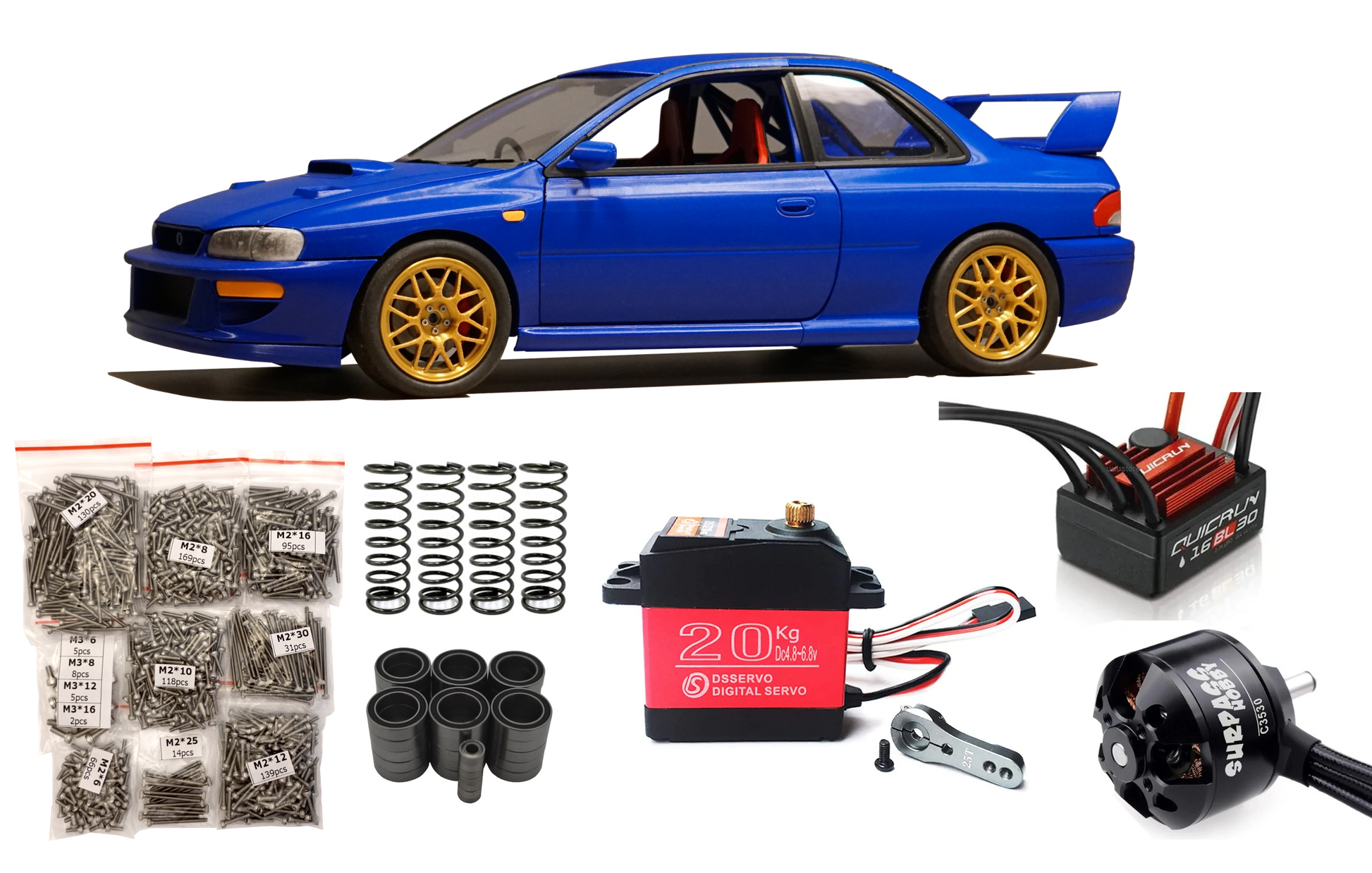

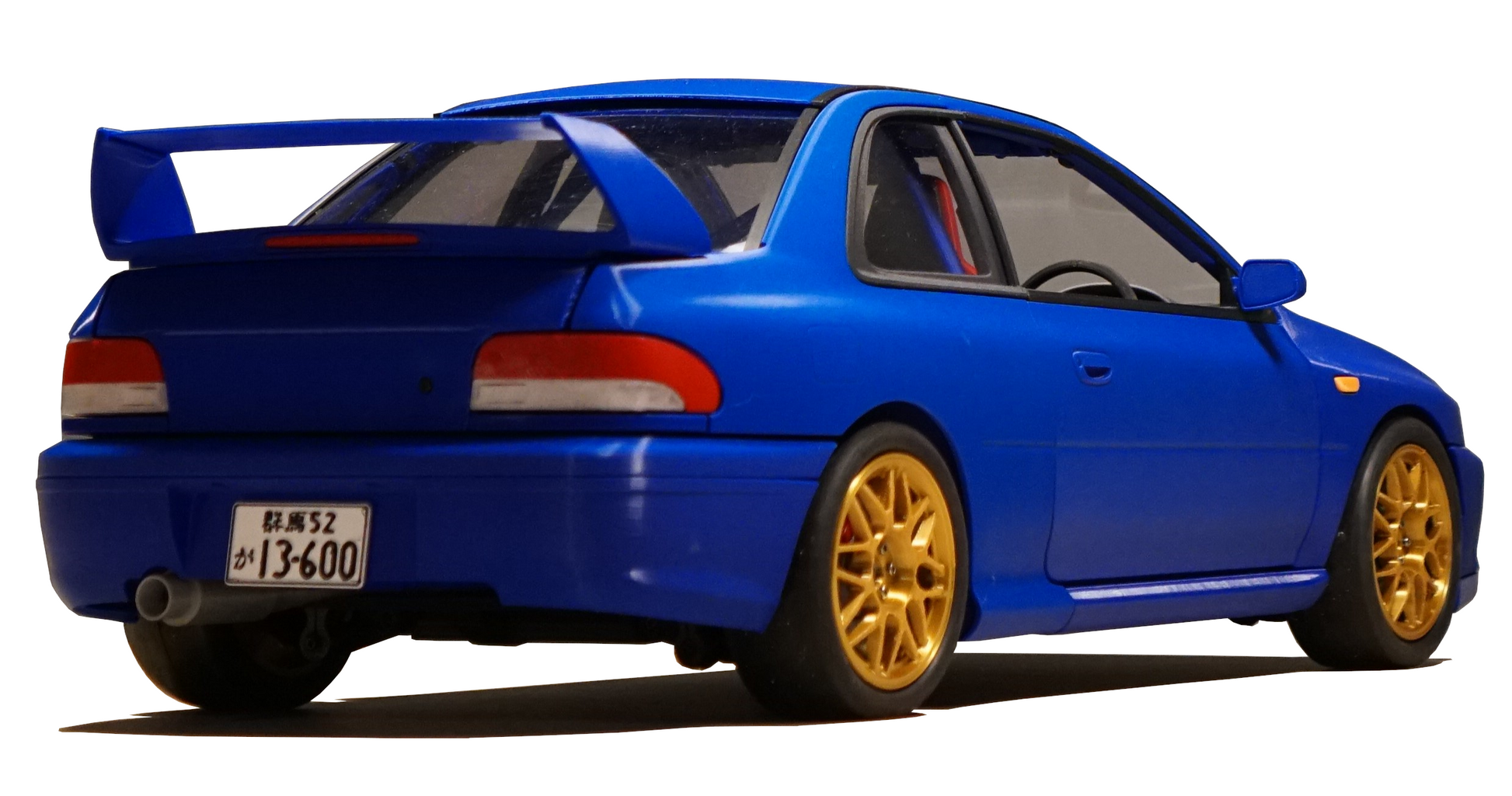

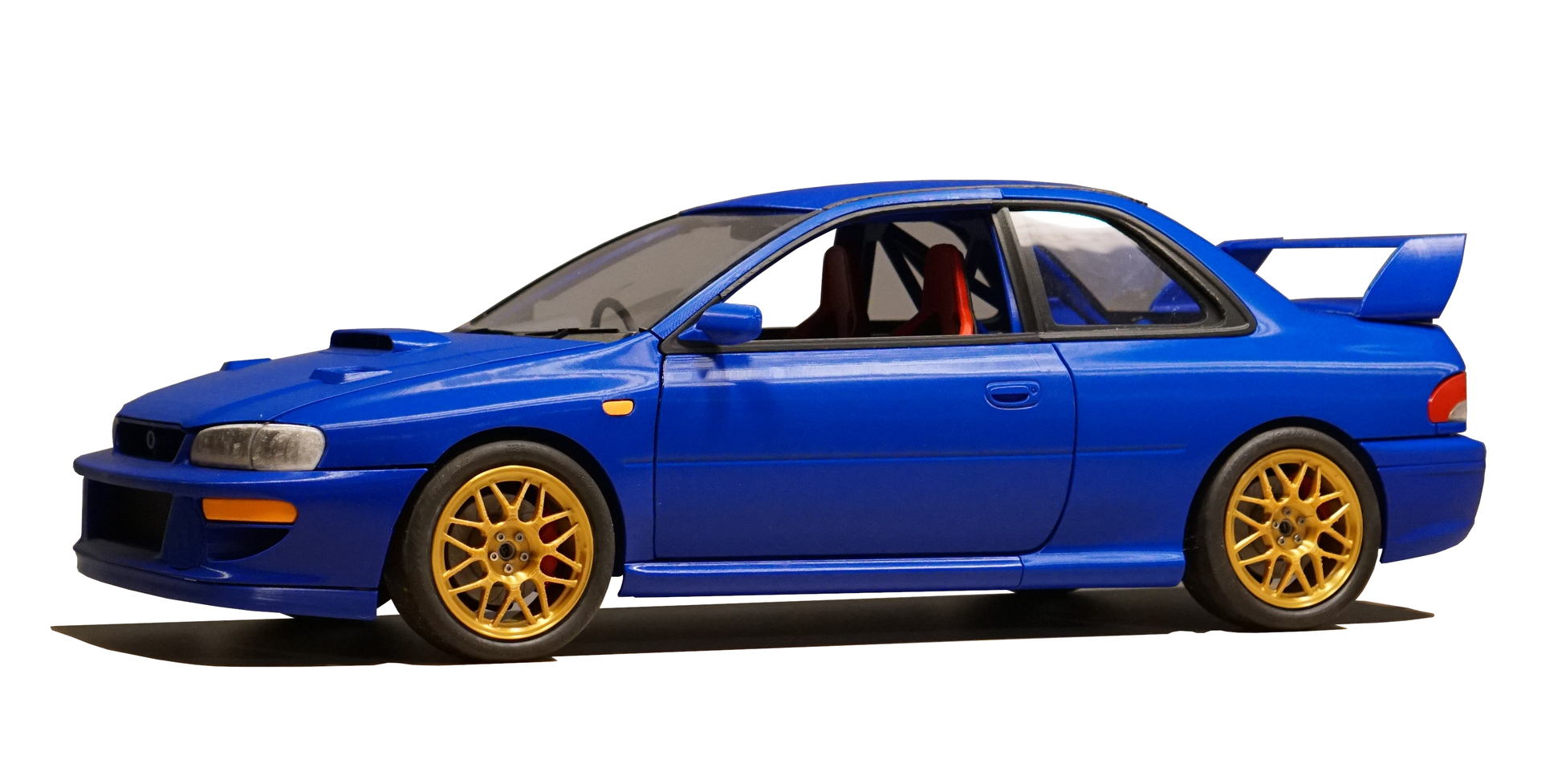

Build Kits for the Casadio Impr3za, the world's first fully 3D-printed remote controlled replica of the Subaru Impreza 22B. Designed for realism and performance, this functional RC model features AWD, working differentials, multi-joint hinges, 3D-printed shocks, and an innovative front axle disengagement mechanism that activates when braking.

 We have various different build kits available including:

• Fastener Only Kit
• All Hardware Kit

• Hardware/Servo Kit

• Hardware/Servo/Motor+ESC Kit

Kits include necessary parts for the model according to the designers instructions.

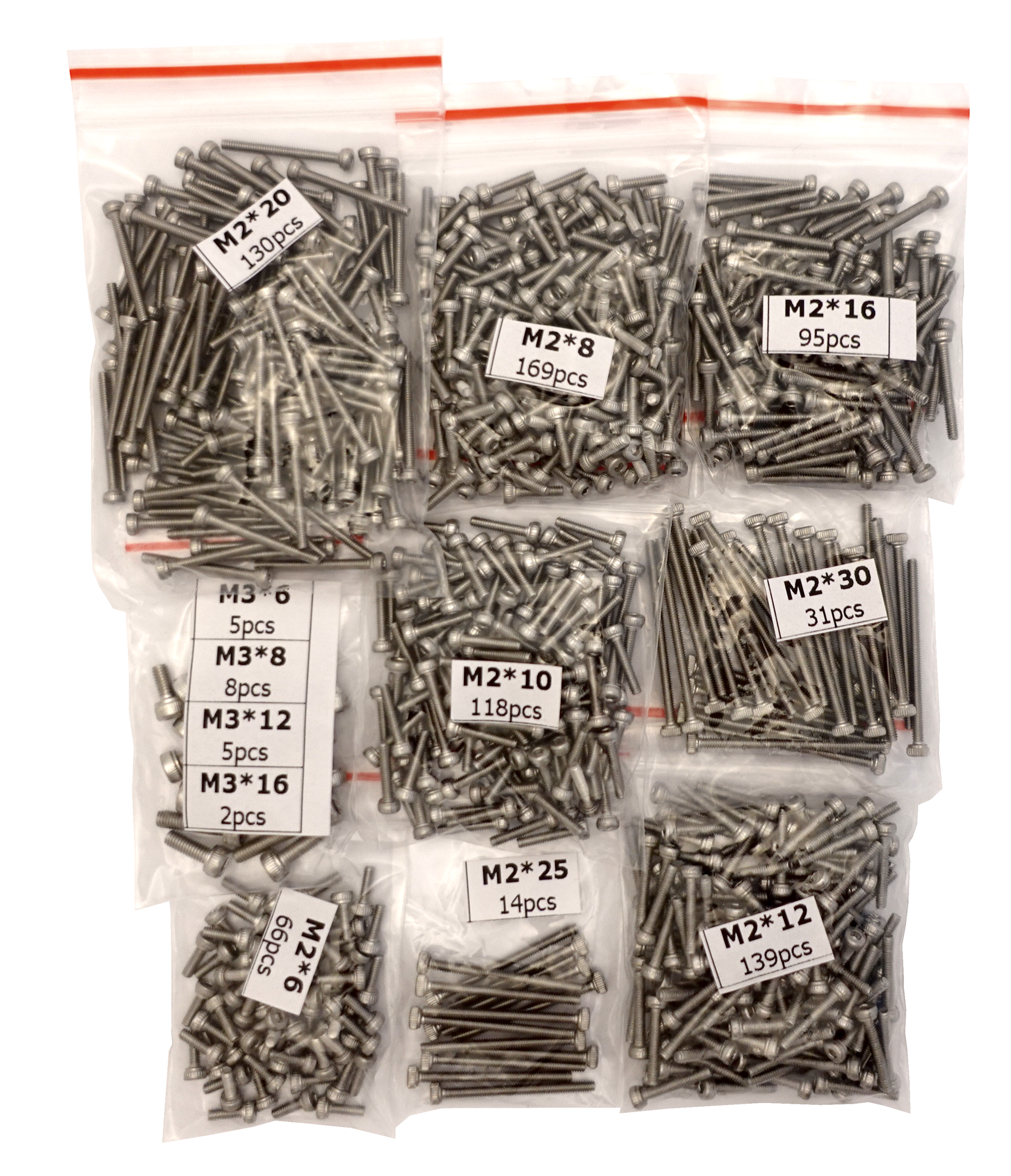

Each Fastener Only Kit contains over 750 metric fastener parts with extras for every size so you don't need to worry about being left short. All M2 and M3 screws are 304 stainless steel for enhanced corrosion resistance. Sockets on all screws are hexagonal and all threads are standard machine threads, not self tapping, at the recommendation of the designer. These threads will tap into the 3D printed plastic just fine.

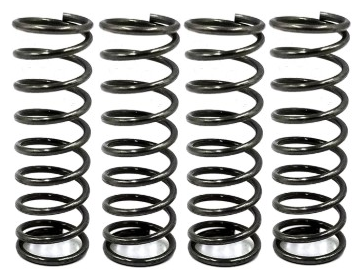

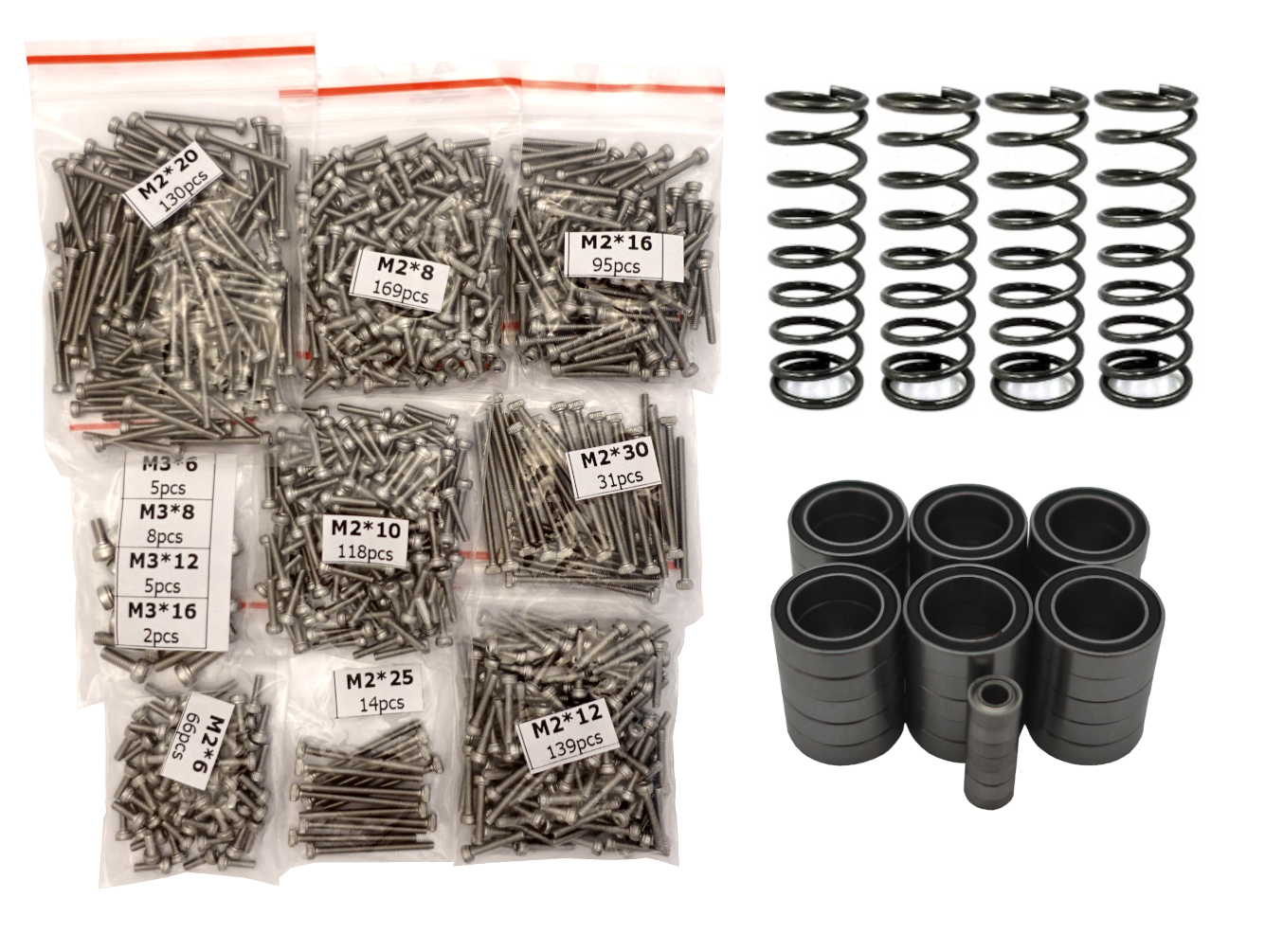

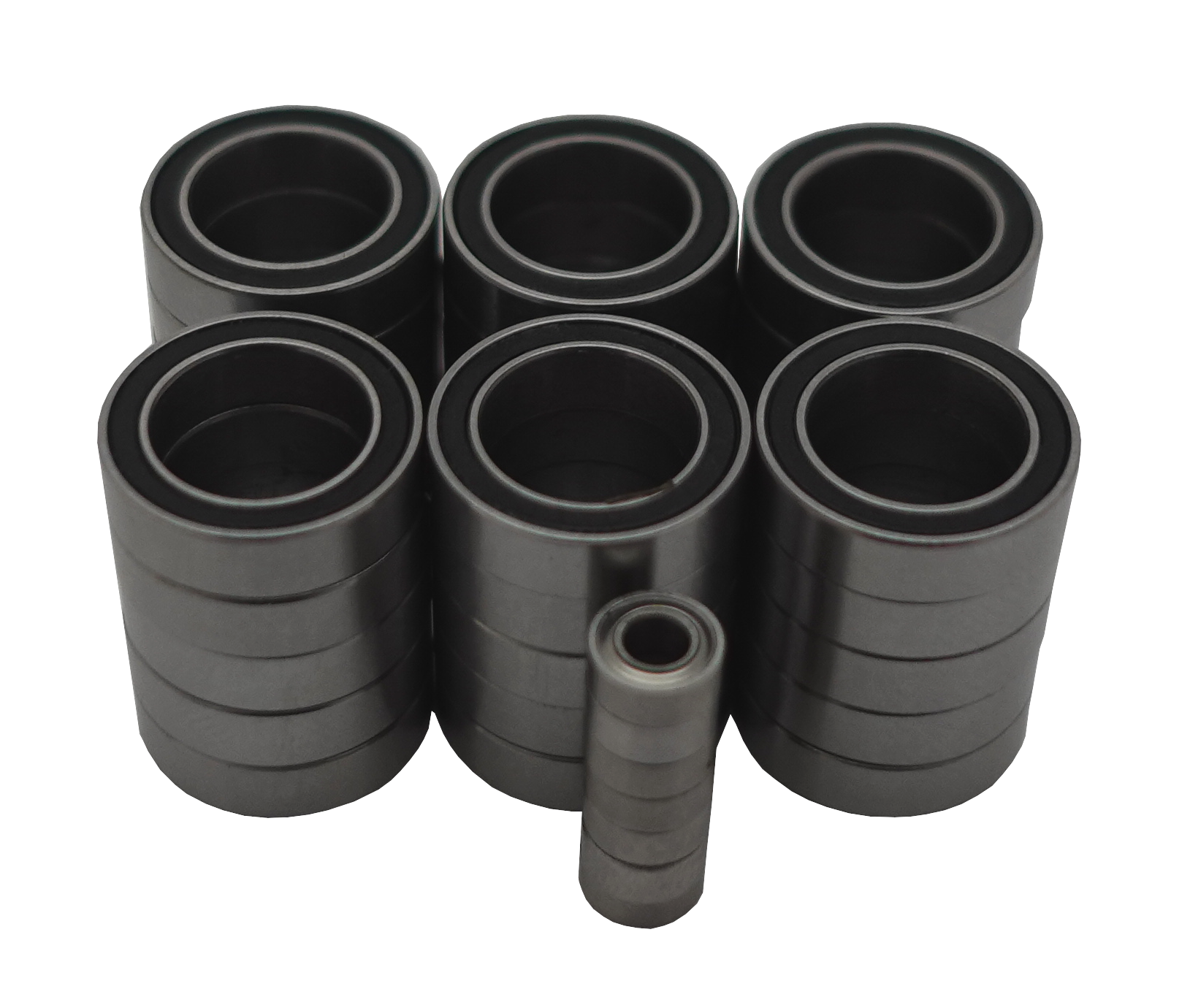

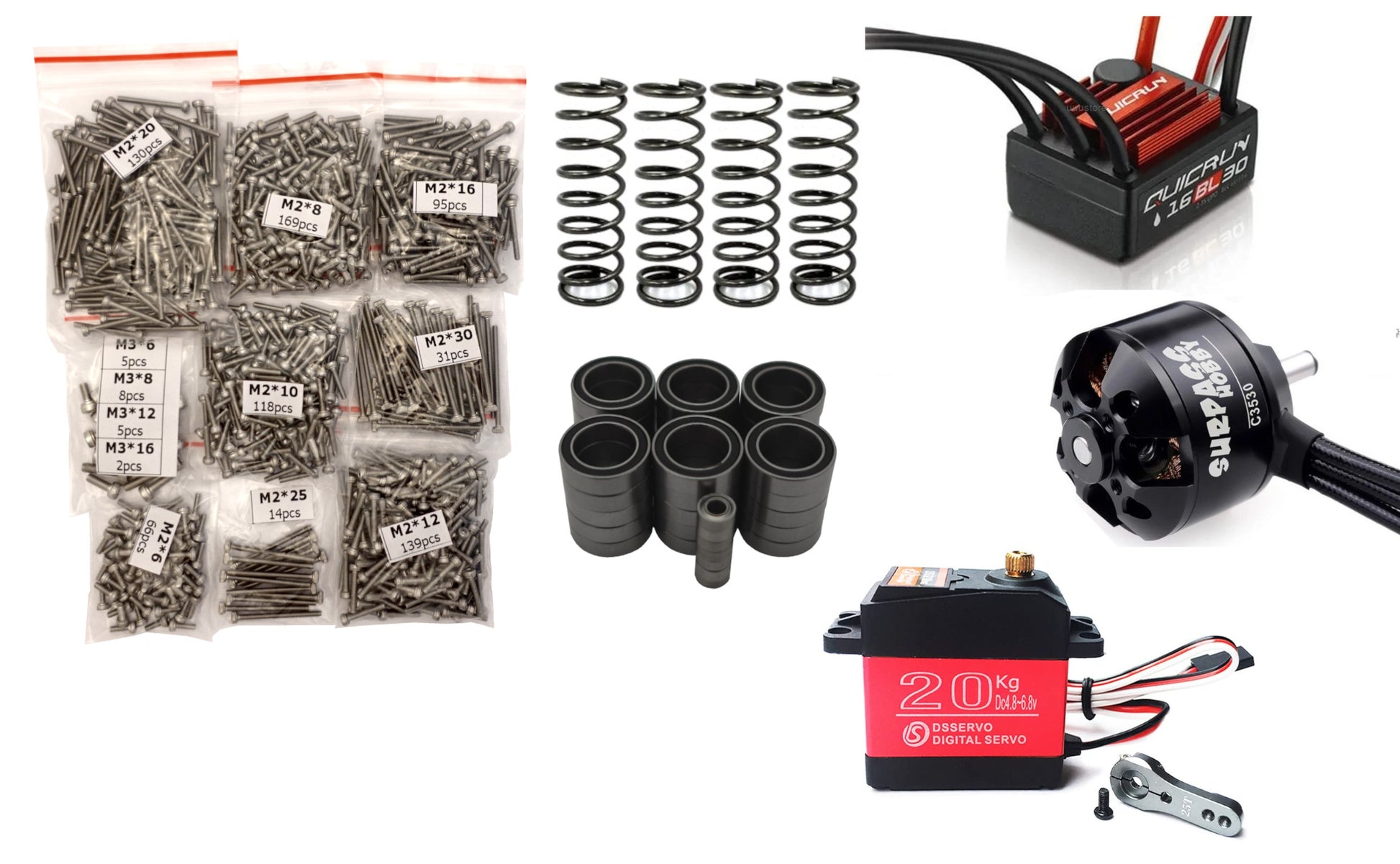

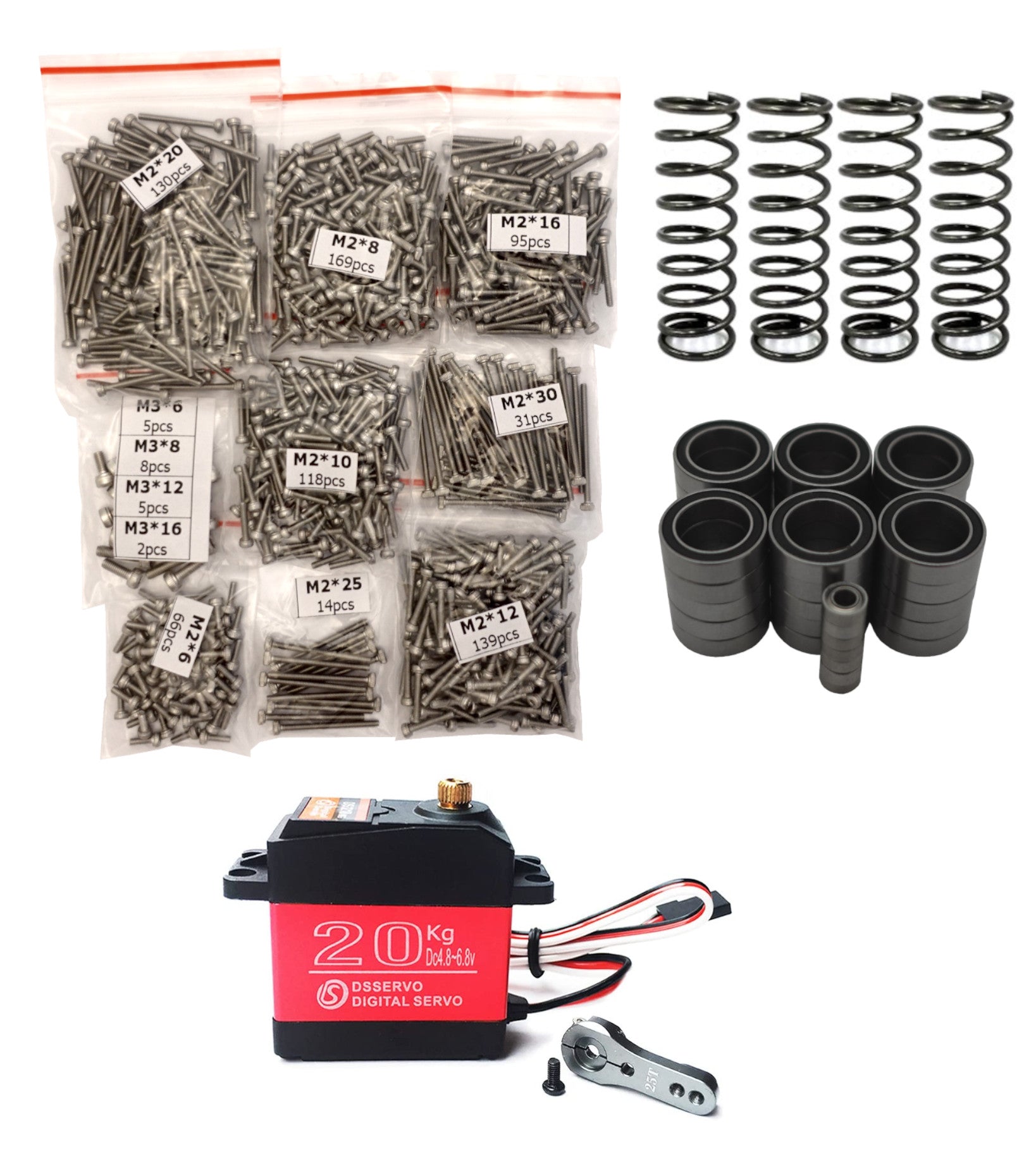

Each All Hardware Kit includes all fasteners as well as bearings and shock springs. For bearings the kit contains 30 high speed 10x15x4mm rubber sealed bearings (6700RS) with Z2 precision rating for low noise, and 7 steel sealed 3x6x2.5mm bearings (MR63ZZ). The Impr3za model only requires 29 x 6700rs and 6 x MR63 bearings but an extra bearing of each size is included just in case. The "All Hardware" kit also contains 4 springs (50x16x1.2mm) to build the 3D printed shocks.

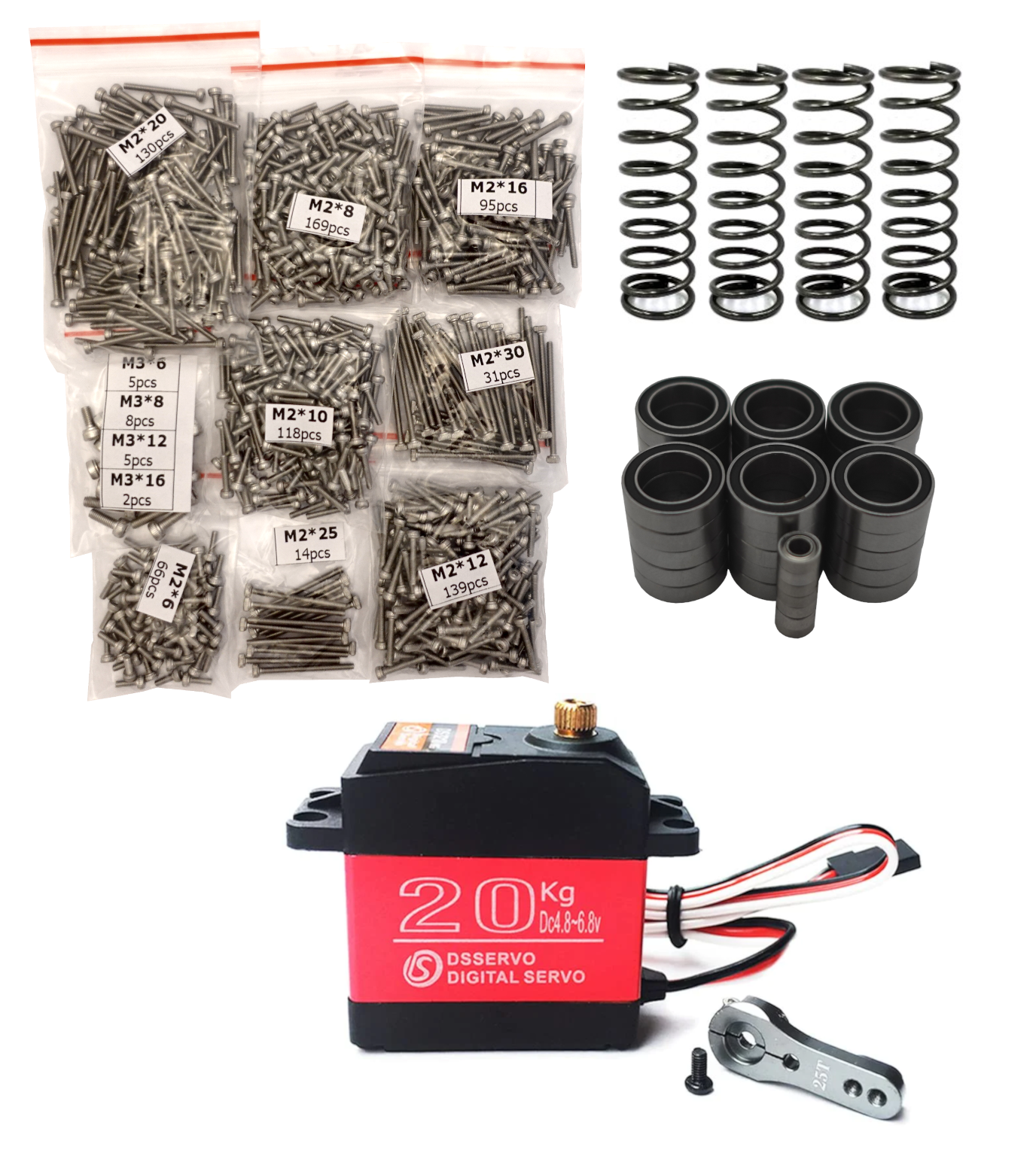

For kits that include a Servo we also include one 20KG Digital Servo (DS3218) with metal gears and an aluminum metal servo arm which is perfect for the Impr3za.

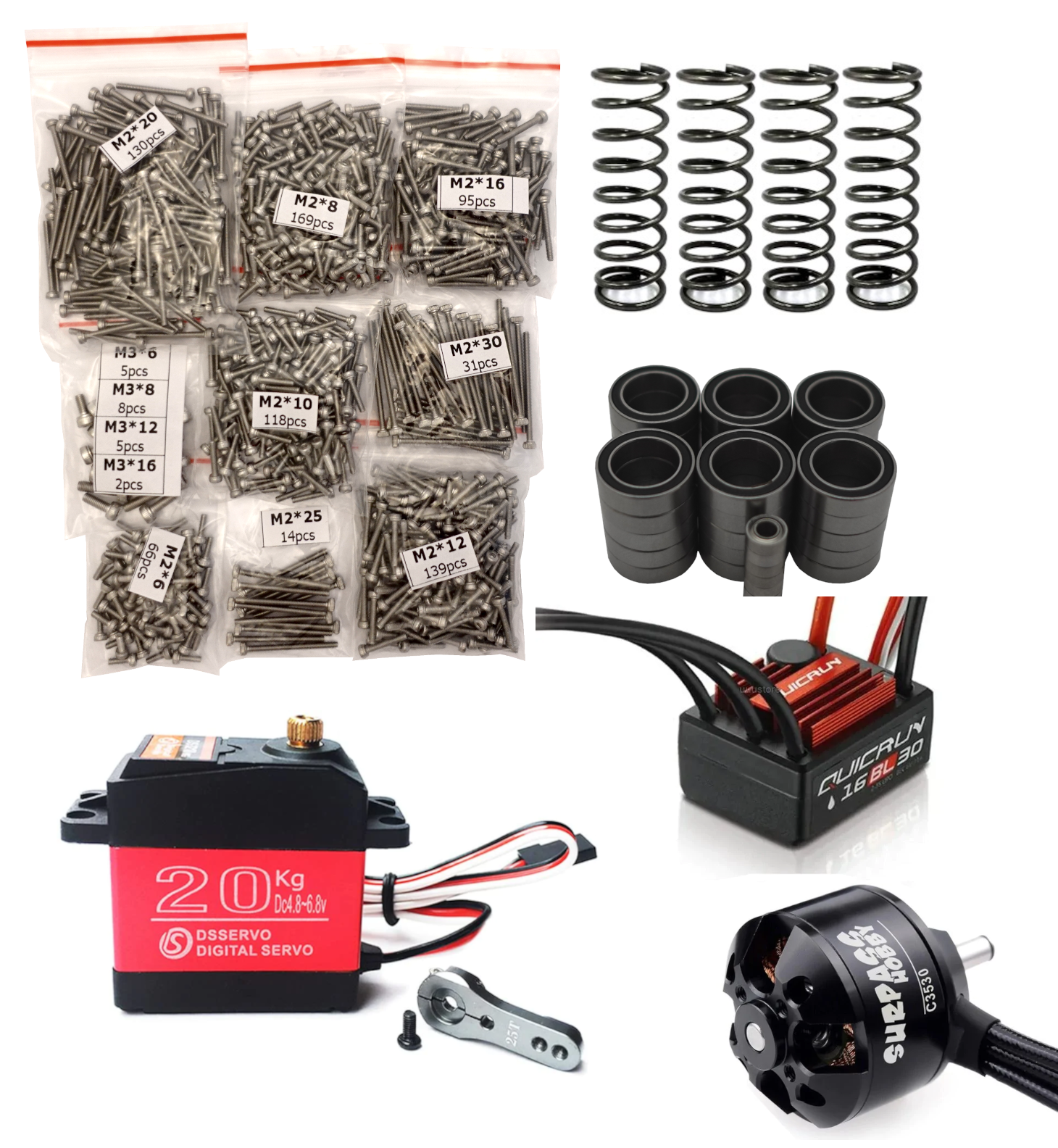

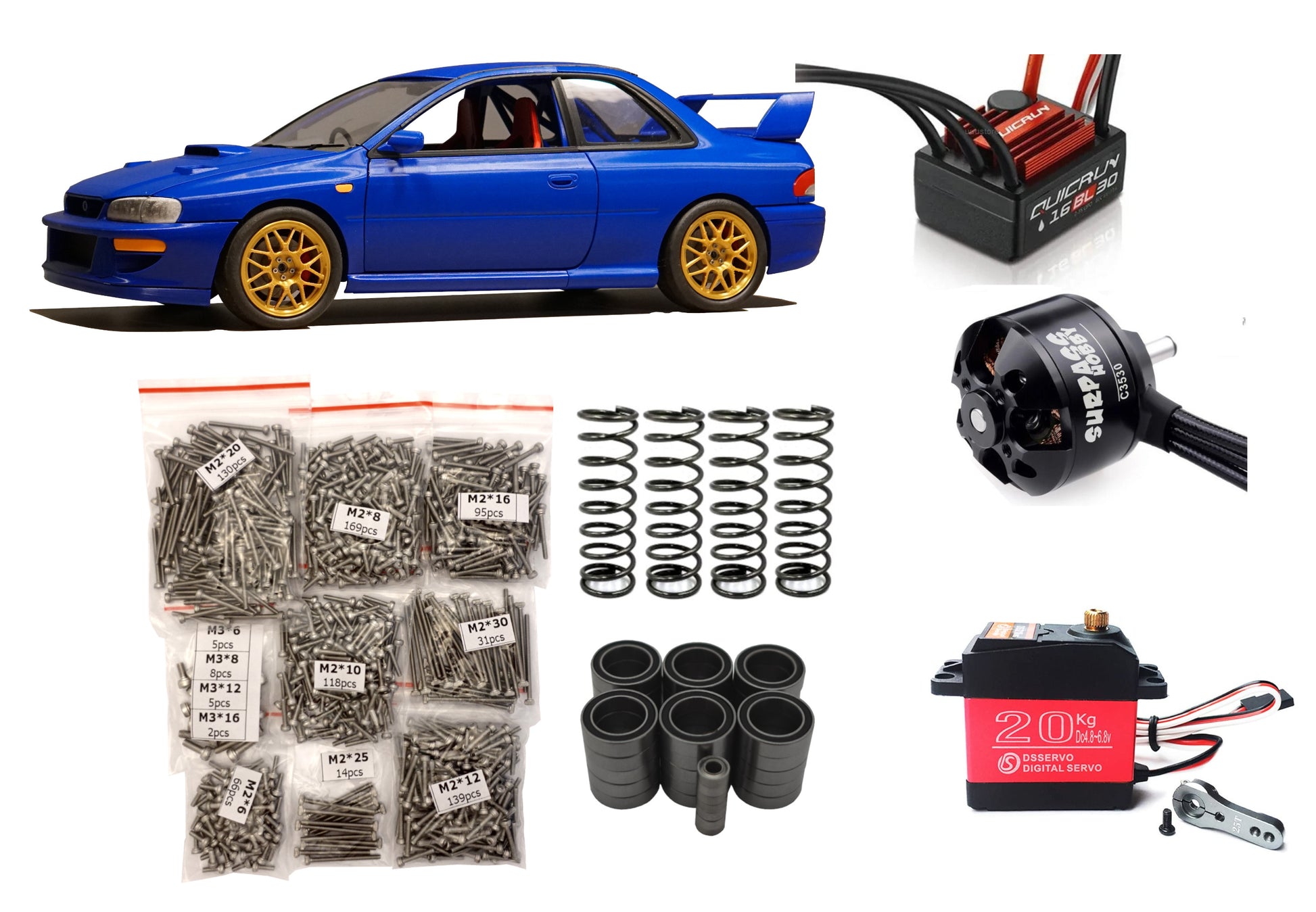

Each kit that includes Motor+ESC will include one C3530 1100KV Brushless Outrunner Motor by Surpass Hobby and one 16BL30 30A Brushless ESC by Hobbywing. This is the recommended brushless motor and ESC combination for the Casadio Impr3za.

Looking for the build files? Find them here.

OUR KITS DO NOT COME WITH THE 3D PRINTED PLASTIC PARTS TO BUILD THE MODEL. YOU NEED TO 3D PRINT THOSE YOURSELF. OUR KITS ONLY COME WITH THE PARTS LISTED ABOVE TO ASSIST YOU IN YOUR BUILD AND OTHER PARTS WILL LIKELY BE REQUIRED TO COMPLETE YOUR BUILD.
