540 Brushed Motor + 60A ESC Combo Kit

Regular price
$29.99 USD
Sale price
$29.99 USD
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

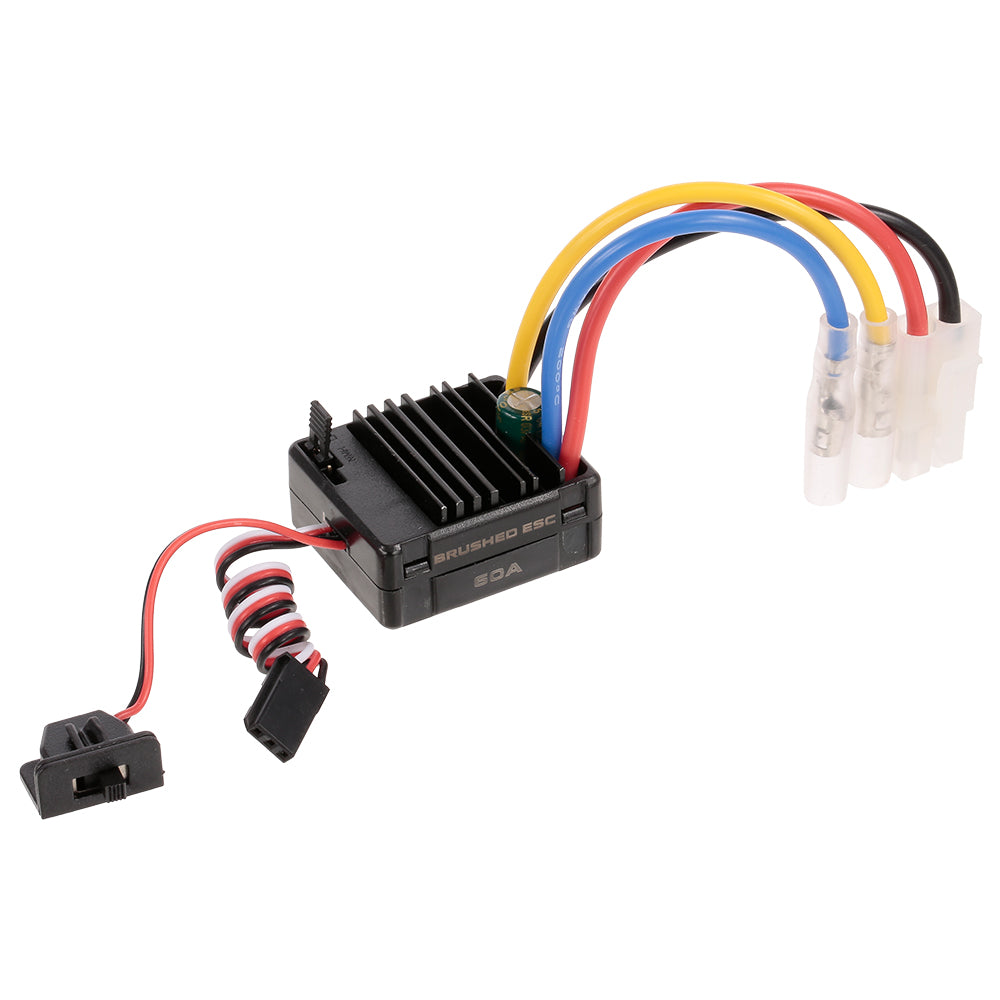

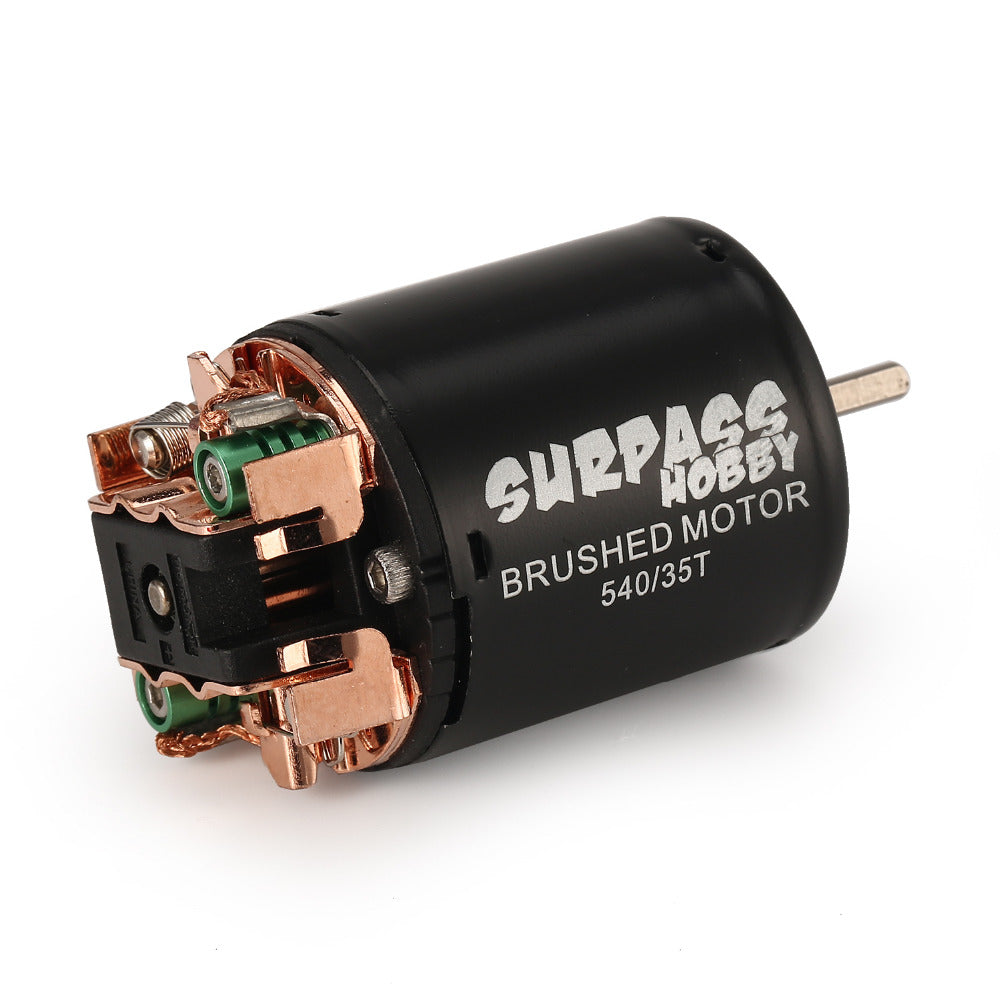

Get a 540 brushed motor and 60A ESC (electronic speed controller) perfect for your 3D printed RC project. This is a complete motor and ESC set so no need to match an appropriate ESC. Combo supports a 2S or 3S LIPO battery or 4-9S NiMh battery.

We currently carry two motor speed ratings:

27T - ideal for 3Dsets Rancher, Landy and similar projects
35T - ideal for OpenRC F1 car and similar projects

(T stands for turns. More turns = more wire. More wire= more resistance. More resistance = slower motor. The lower the T number the higher the power.)

Specifications
Brand name: Surpass Hobby
Color: Black
Size: 540
Turns: 27T (17800 RPM), 35T (13500 RPM)
Screw hole: 4 * M3
Input voltage: 2-3s Lipo, 4-9S NiMh
Diameter: 36mm
Length: 53mm
Length of extend shaft: 12mm
Shaft diameter: 3.175mm
Motor weight: Approx 165-170g
ESC weight: Approx 38g
Combined weight in box:  Approx 260g

Please note that this boxed motor combo kit comes with wire leads but it requires some minor soldering to attach the leads to the terminals on the motor. The ESC comes with a Tamiya plug and if an alternate plug is preferred you will also need to solder on a new one.
