3DSets Reaper Build Kits
3DSets Reaper Build Kits

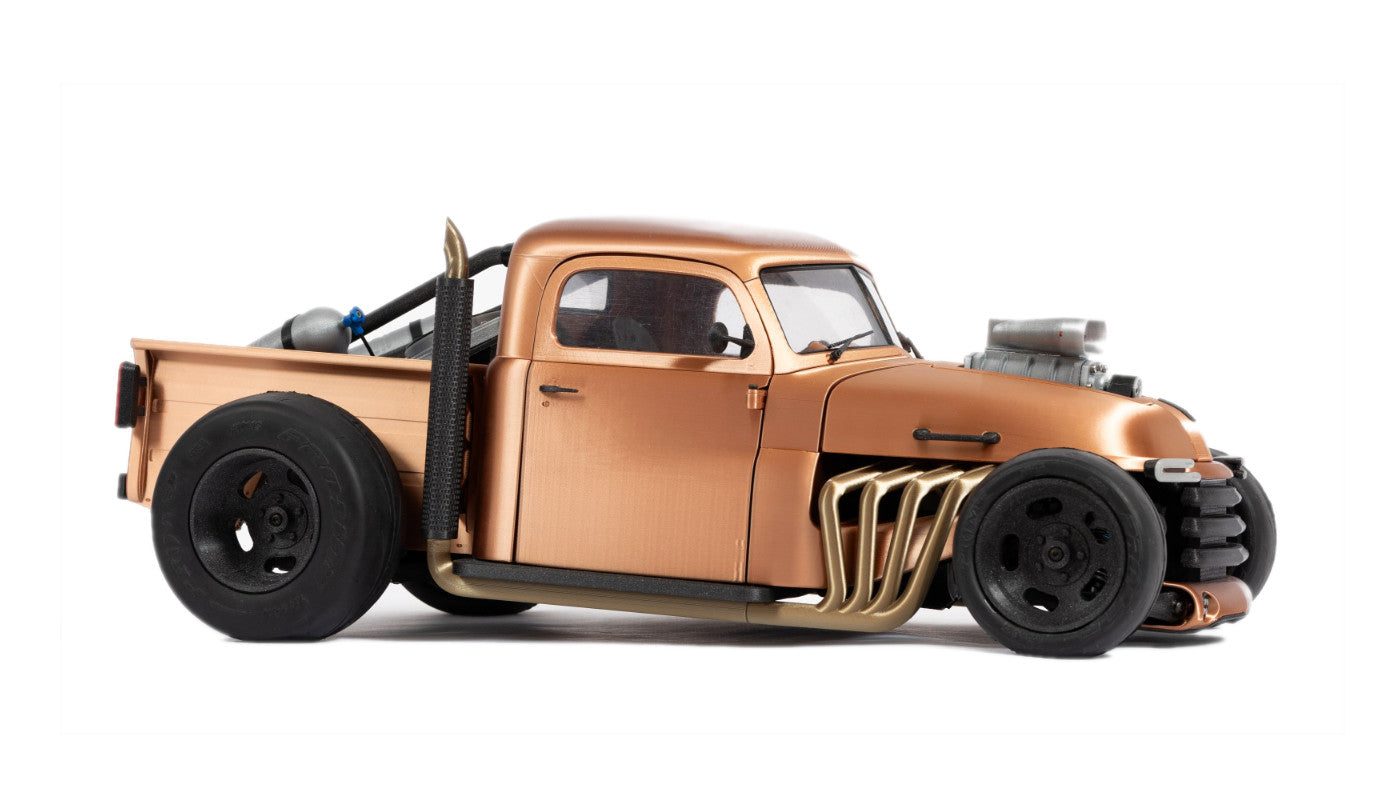

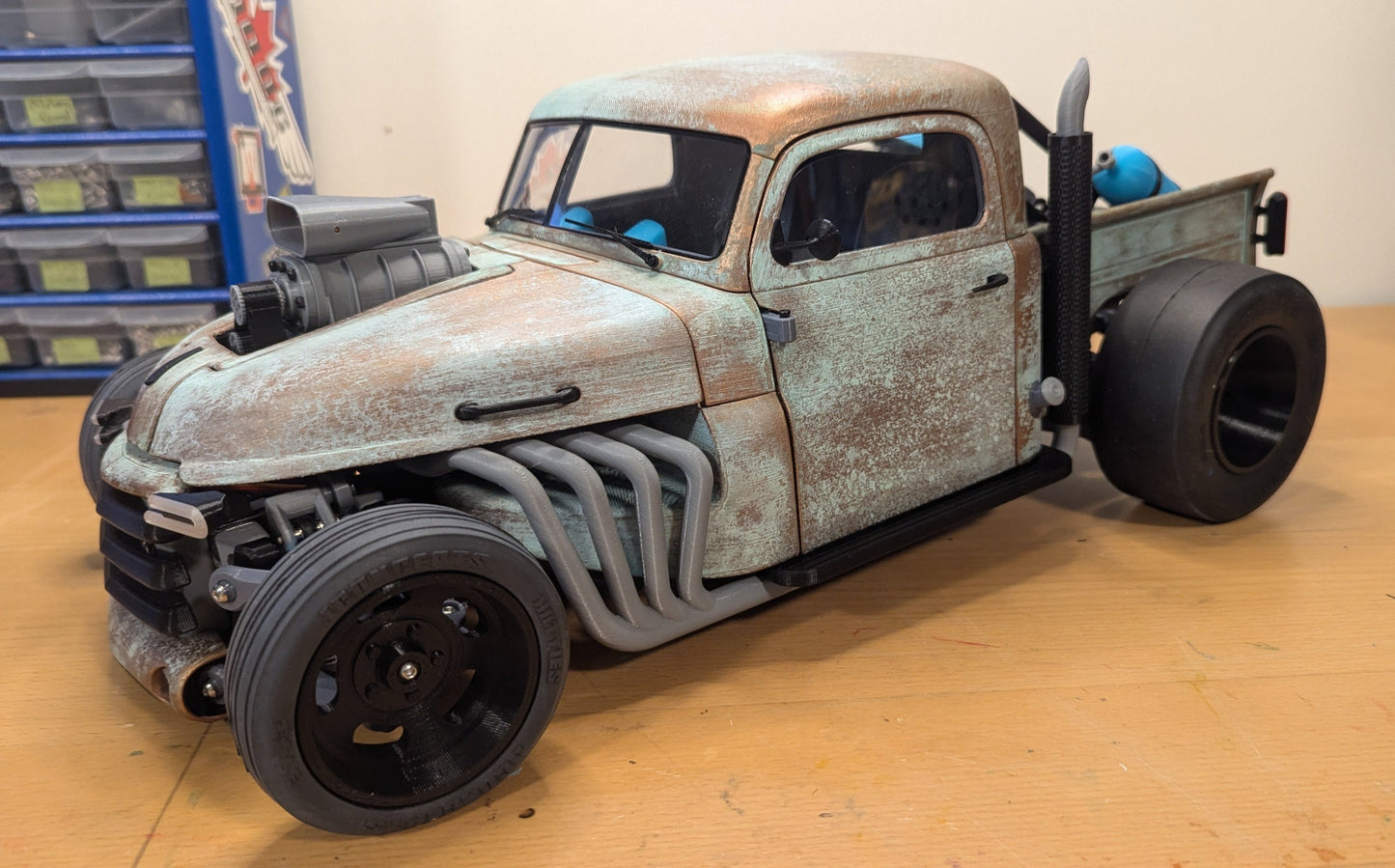

Build Kits for the 3DSets Reaper Hot Rod RC Car! Our Reaper kits include all of the fasteners to build either the standard Reaper or the Reaper+Downrider as per the designer's build guide. We have various different build kits available including:
- Fasteners Only Kit
- Fastener and Bearing Kit
- Fastener/Bearing/Servo Kit
- Fastener/Bearing/Servo/Belts Kit
- Fastener/Bearing/Servo/Belts/Motor+ESC Kit

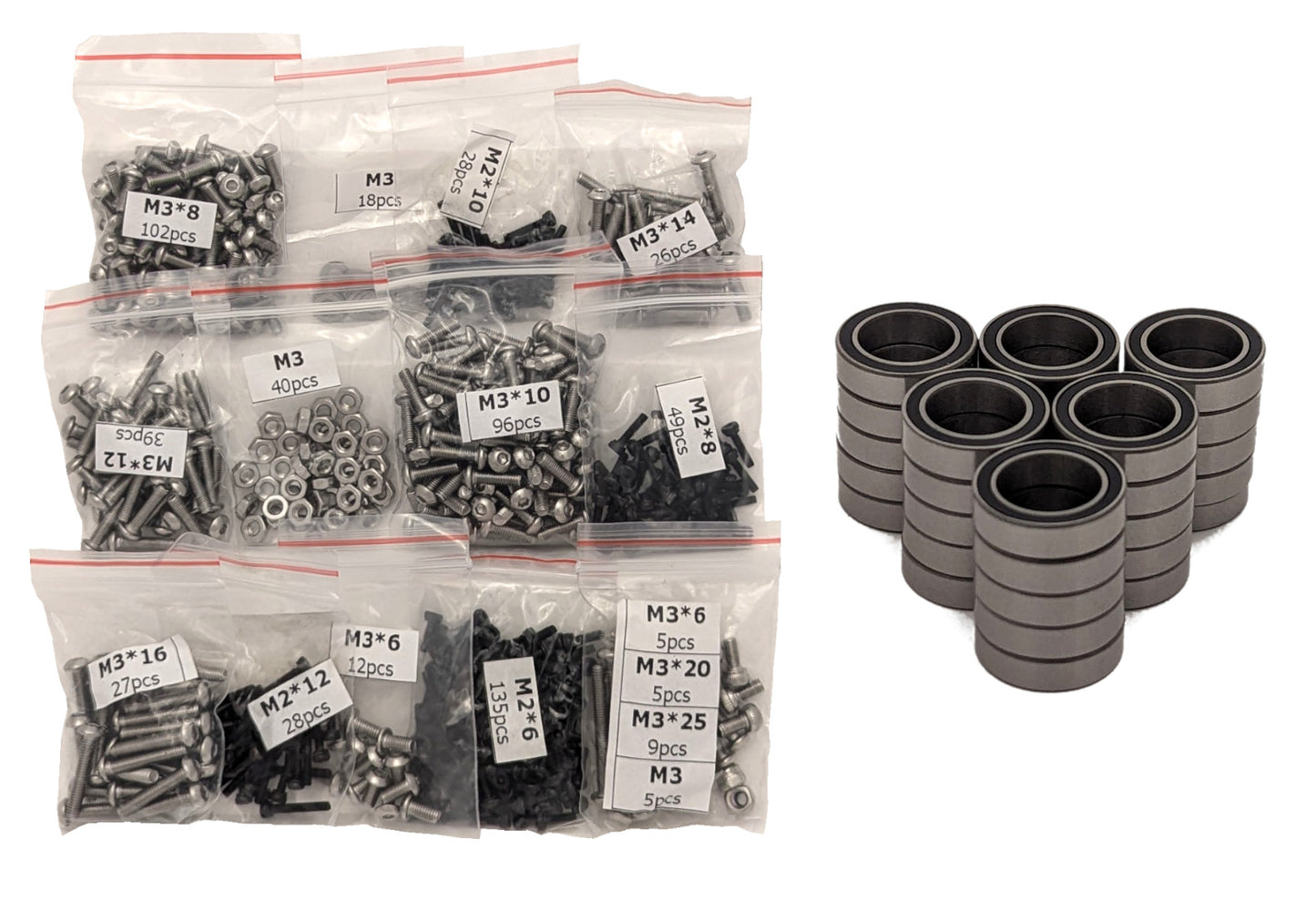

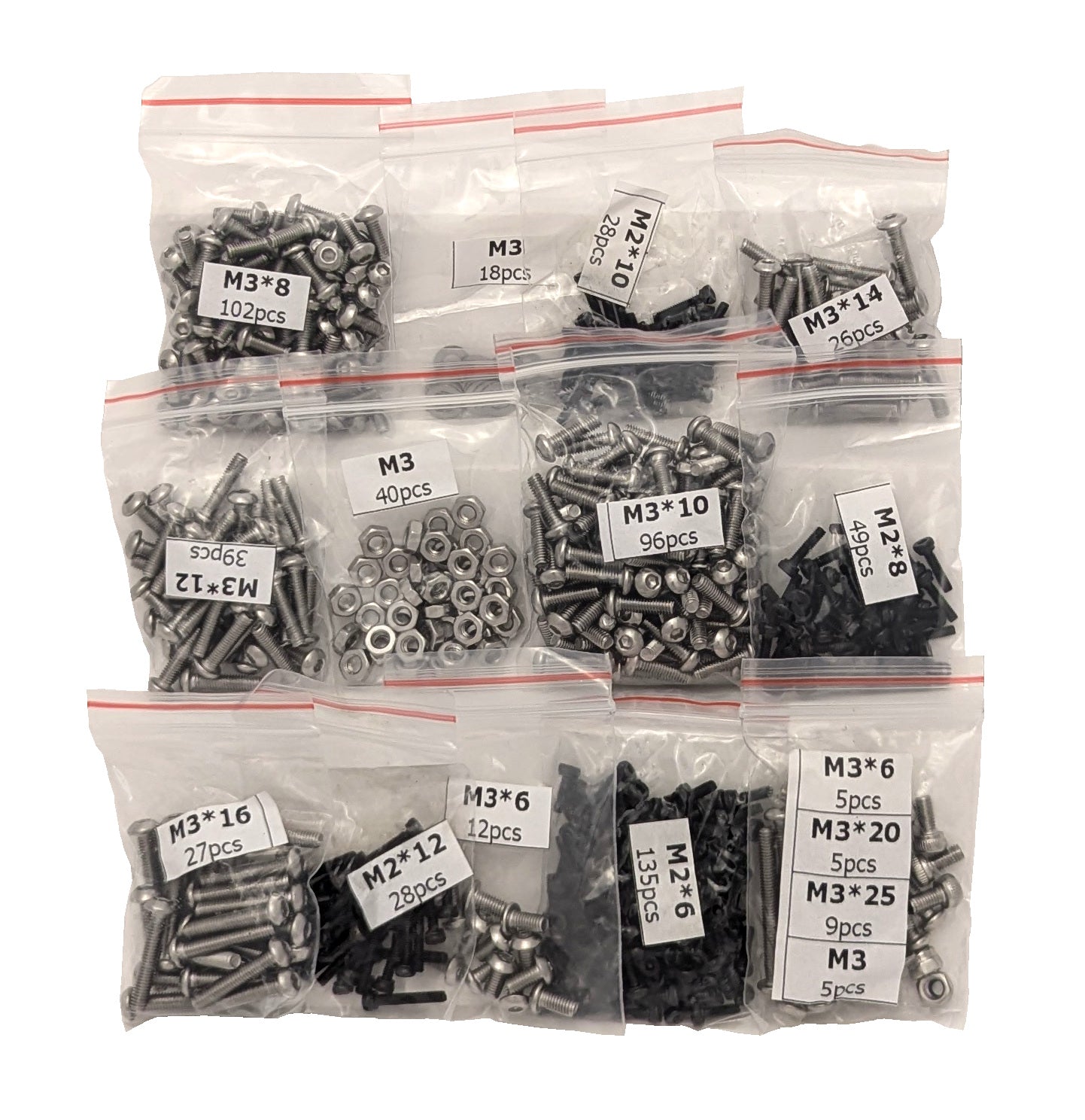

Each Fastener Kit contains over 600 metric fastener parts with some extras for every type of screw required. We include all fasteners for building either the standard Reaper or the Reaper+Downrider as per the designer's build guide. The M2 screws in our 3DSets RC kits are black class 12.9 steel as they are used mostly for the attachment of body parts and they blend well with the design. All m3 screws which are used mostly for the chassis and suspension are 304 stainless steel for enhanced corrosion resistance. Sockets on all screws including button head (round/pan), countersunk and socket (cylindrical) screws are hexagonal.
Each Bearing Kit contains 30 high speed 10x15x4mm rubber sealed bearings (6700rs) with Z2 precision rating for low noise. The Reaper requires up to 26 bearings but we also include a few extra bearings just in case.

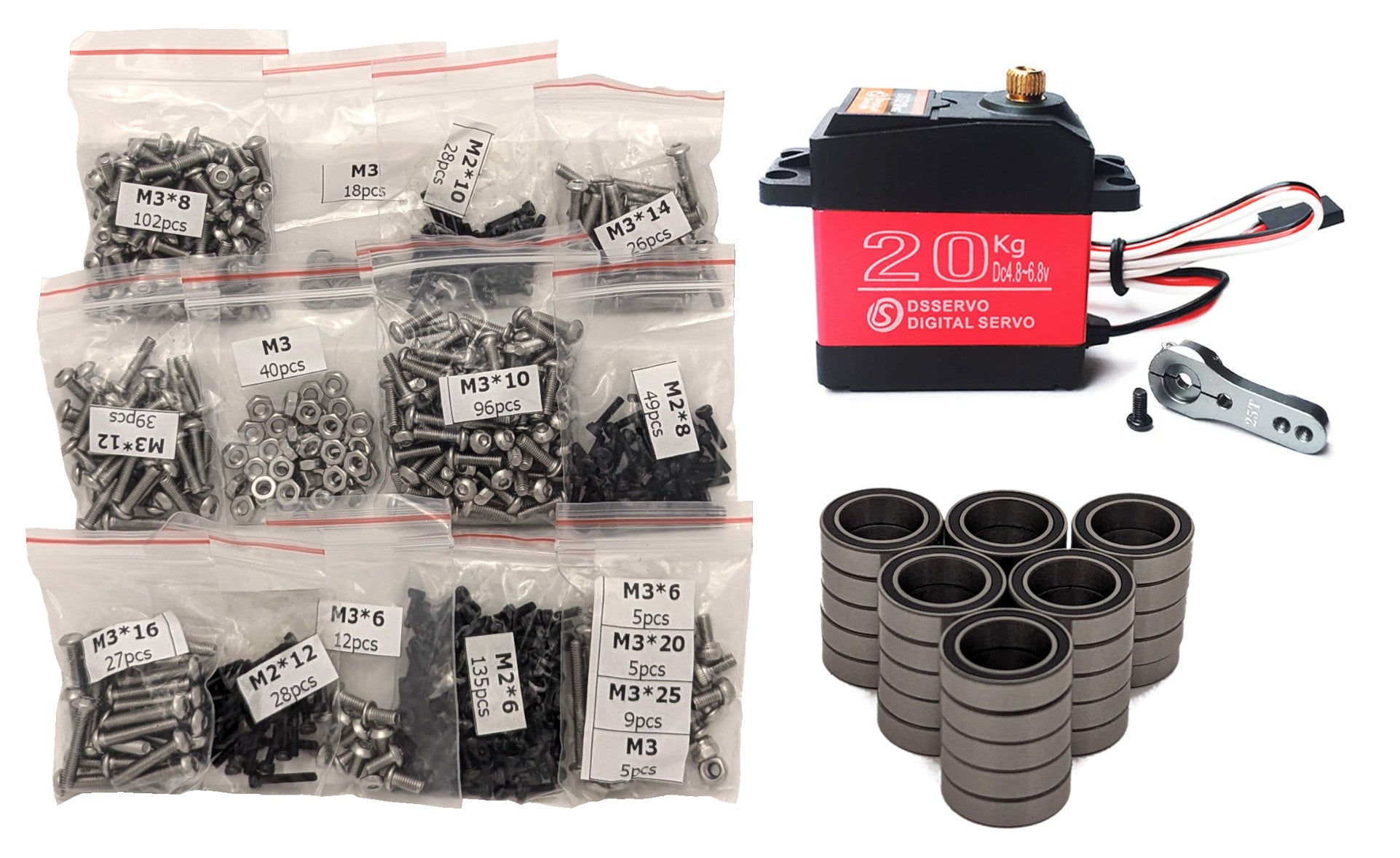

For kits that include a Servo we also include one 20KG Digital Servo (DS3218) with metal gears which is a great and reliable choice for the Reaper model's steering.

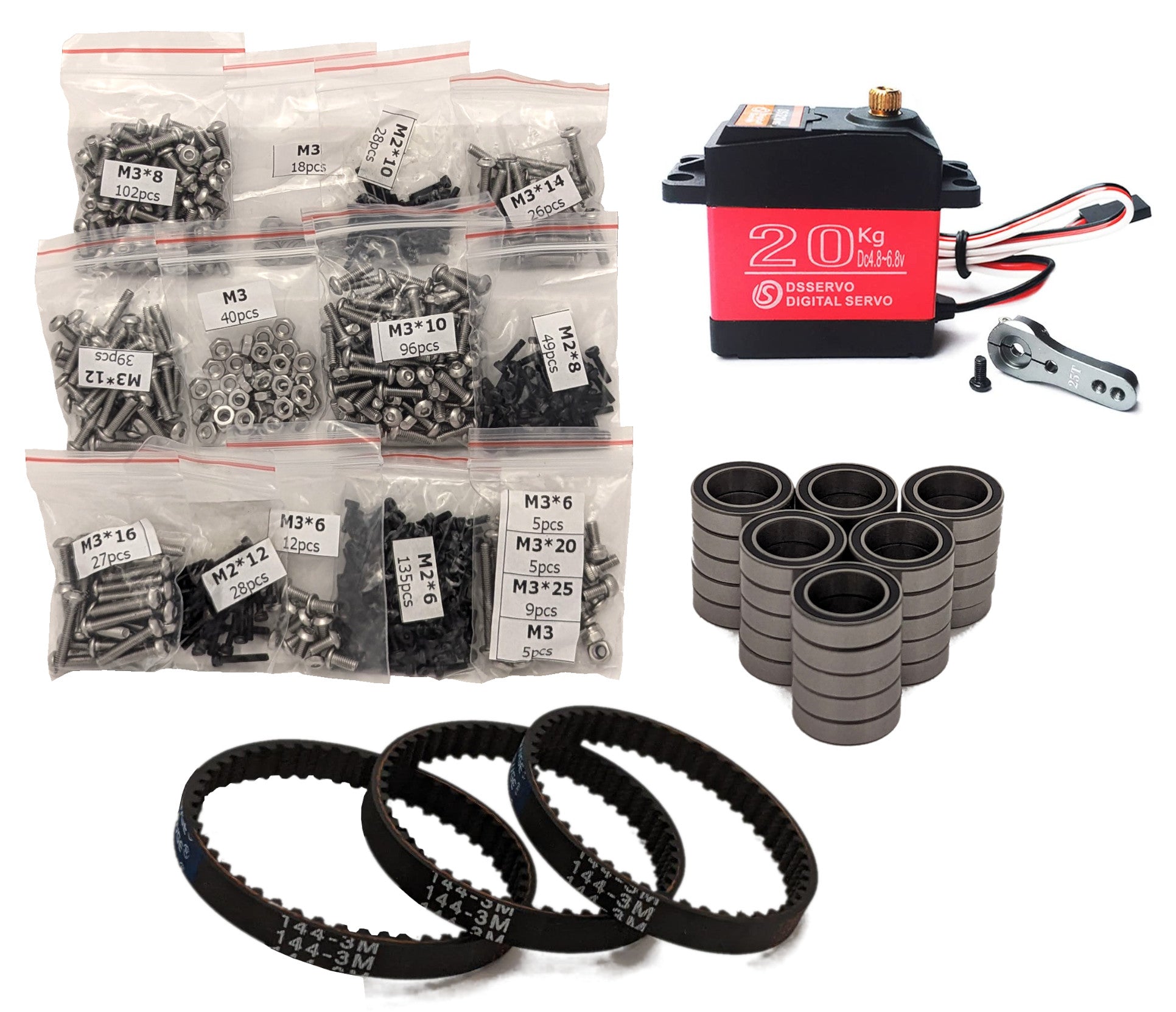

Each kit that includes Belts will also include 4 timing belts to fit the 3DSets Reaper. These belts are the appropriate HTD 144-3M-06 Belts (144mm long, 3mm teeth distance, 6mm wide) for the model. Belts are constructed out of Neoprene rubber with a fiberglass core. Only 3 belts are required for the model but we include 1 extra.

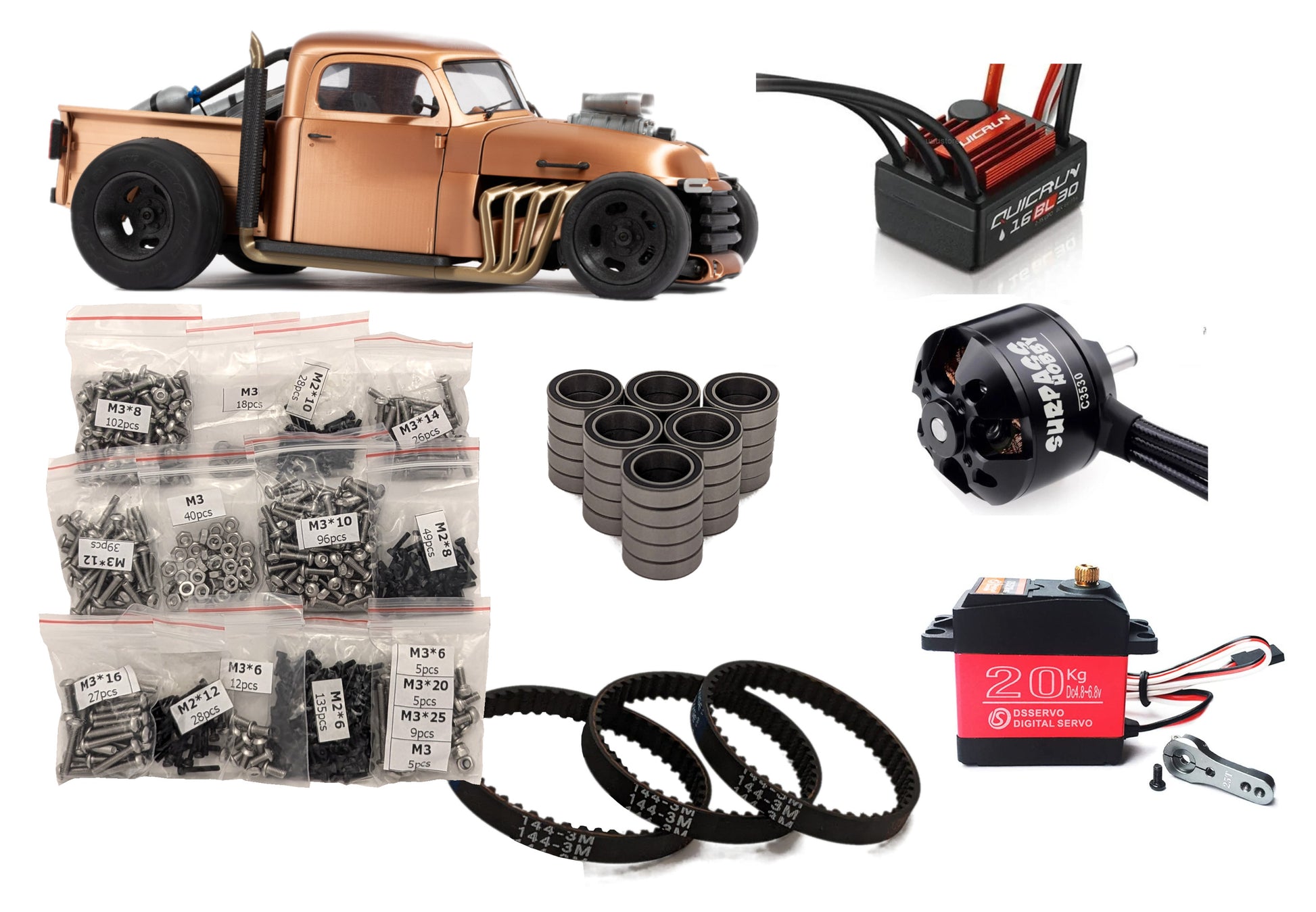

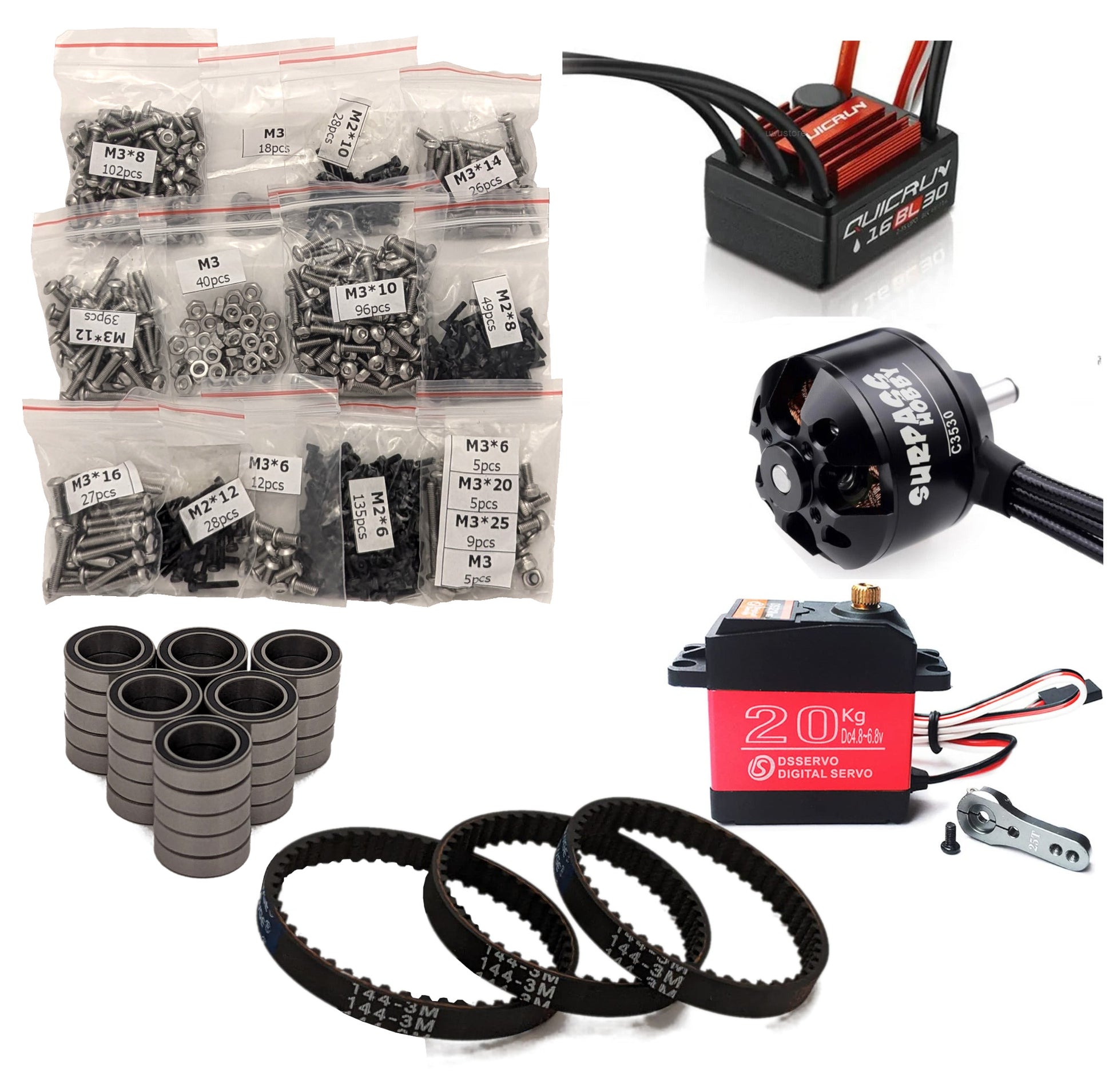

Each kit that includes Motor+ESC will include one C3530 1400KV Brushless Outrunner Motor by Surpass Hobby and one 16BL30 30A Brushless ESC by Hobbywing. This is the recommended brushless motor and ESC combination for the 3DSets Reaper.
Downrider Pack Add-ons! If you are looking to build the reaper with the downrider you will also need two additional micro servos with a minimum torque of 2kg/cm. We carry the MG90S servos which have metal gears and a torque of 2kg/cm @6V.
Looking for the build files? Find them at www.3DSets.com.
Looking for shocks? Check out our selection here.
OUR KITS DO NOT COME WITH THE 3D PRINTED PLASTIC PARTS TO BUILD THE MODEL, YOU NEED TO 3D PRINT THOSE YOURSELF. OUR KITS ONLY COME WITH THE PARTS LISTED ABOVE TO ASSIST YOU IN YOUR BUILD AND OTHER PARTS WILL LIKELY BE REQUIRED TO COMPLETE YOUR BUILD.
