3DSets Max Build Kits
3DSets Max Build Kits

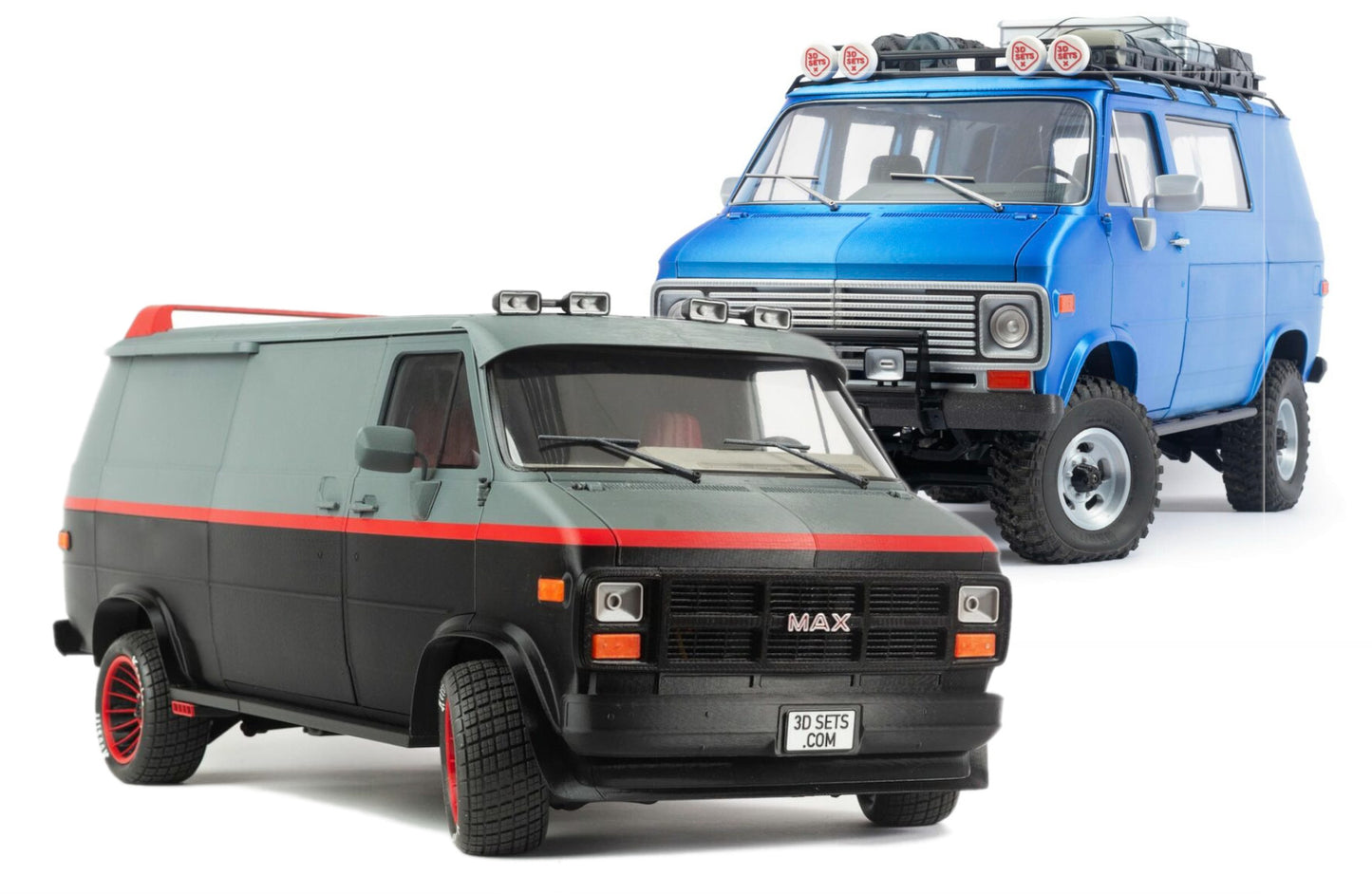

Build Kits for the 3DSets Max Team or Max 4x4 3D printed RC Van. We have various different build kits available including:
- Fastener Only Kit
- Fastener and Bearing Kit
- Fastener/Bearing/Servo Kit
- Fastener/Bearing/Servo/Belts Kit
- Fastener/Bearing/Servo/Belts/Motor+ESC Kit
Kits include all necessary fasteners for the model according to the designers build guide.

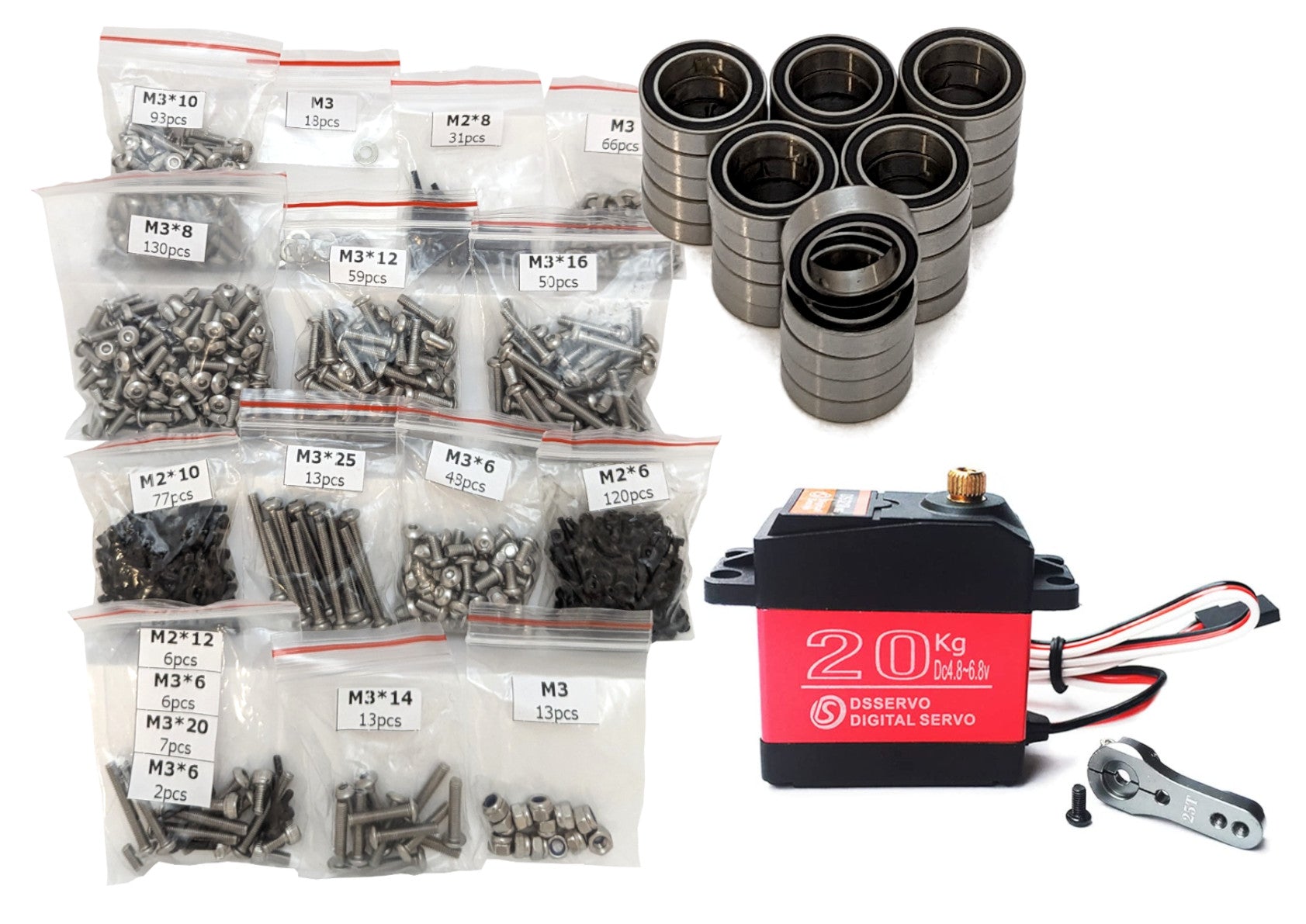

Each Fastener Kit contains over 750 metric fastener parts with extras so you don't need to worry about being left short. The M2 screws in our 3DSets RC kits are black class 12.9 steel as they are used mostly for the attachment of body parts and they blend well with the design. All m3 screws which are used mostly for the chassis and suspension are 304 stainless steel for enhanced corrosion resistance. Sockets on all screws including button head (round/pan) and socket (cylindrical) screws are hexagonal.

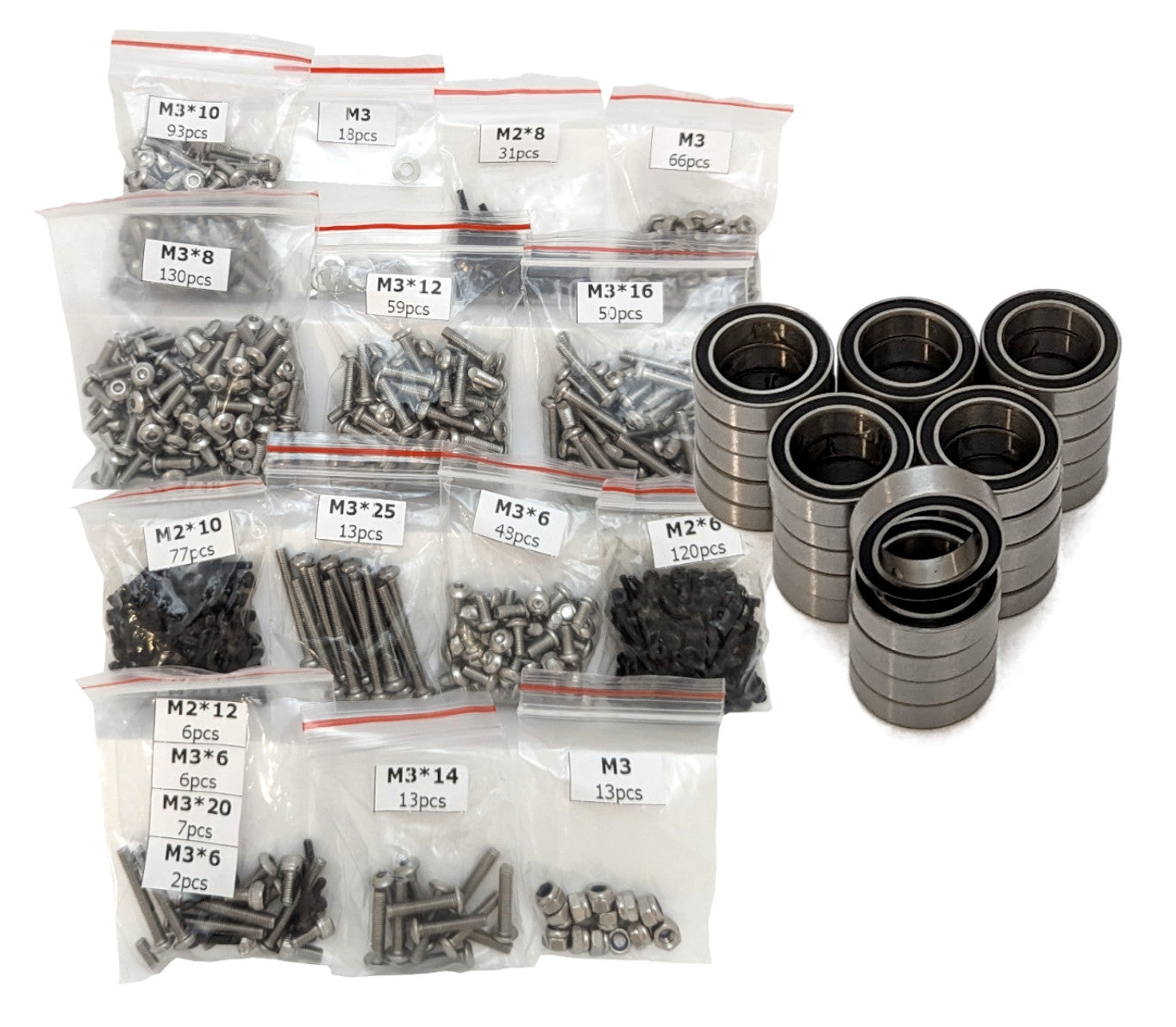

Each Bearing Kit contains 40 high speed 10x15x4mm rubber sealed bearings (6700rs) with Z2 precision rating for low noise. The models require upto 38 bearings depending on motor and differential set-up and we include a couple of extra bearings just in case.
For kits that include a Servo we also include one 20KG Digital Servo (DS3218) with metal gears and an aluminum metal servo arm which is perfect for the Max models.

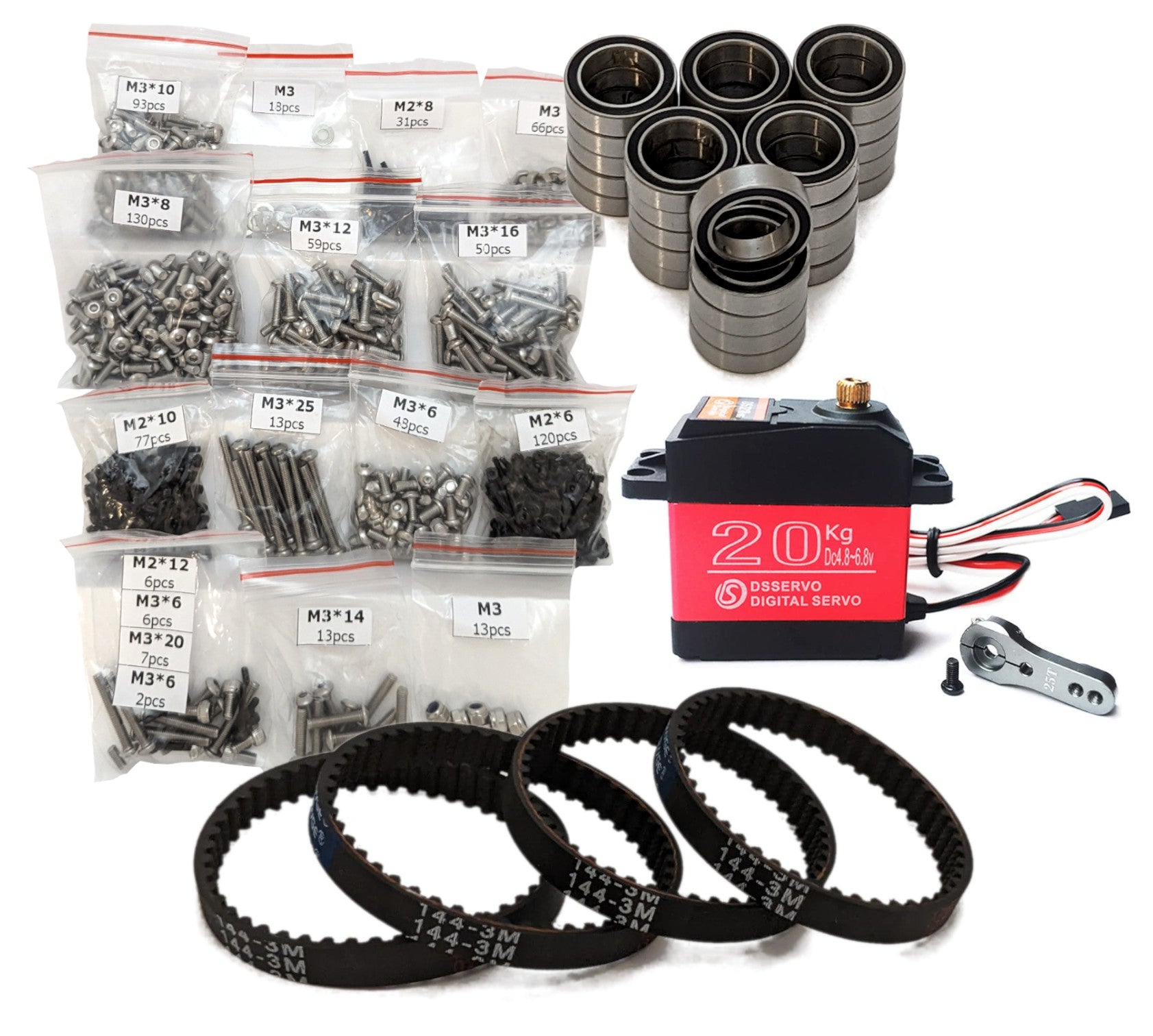

Each kit that includes Belts will also include 4 timing belts to fit the 3D Sets Max's brushless drivetrain. This includes 4 HTD 144-3M-06 Belts (144mm long, 3mm teeth distance, 6mm wide). Belts are constructed out of Neoprene rubber with a fiberglass core.

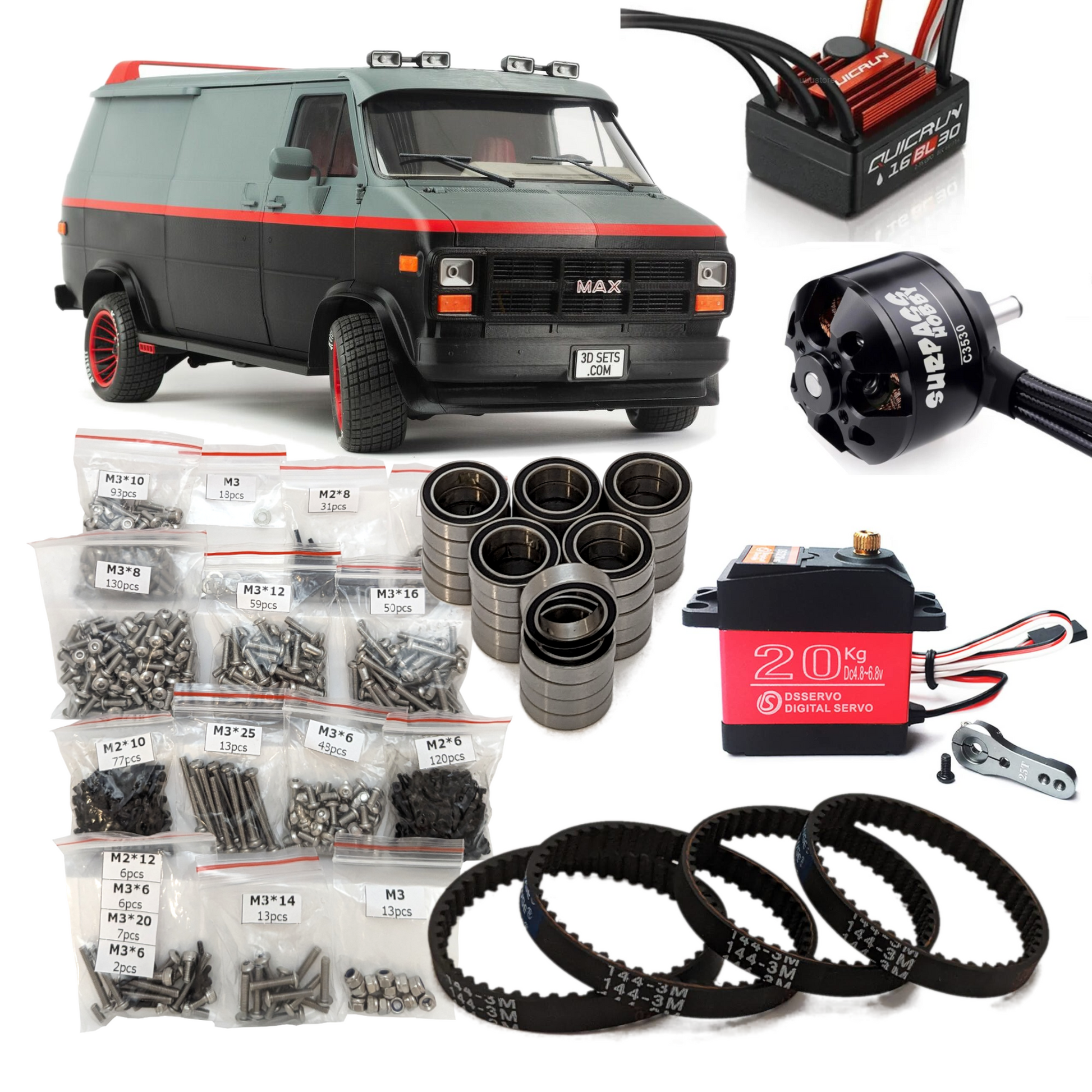

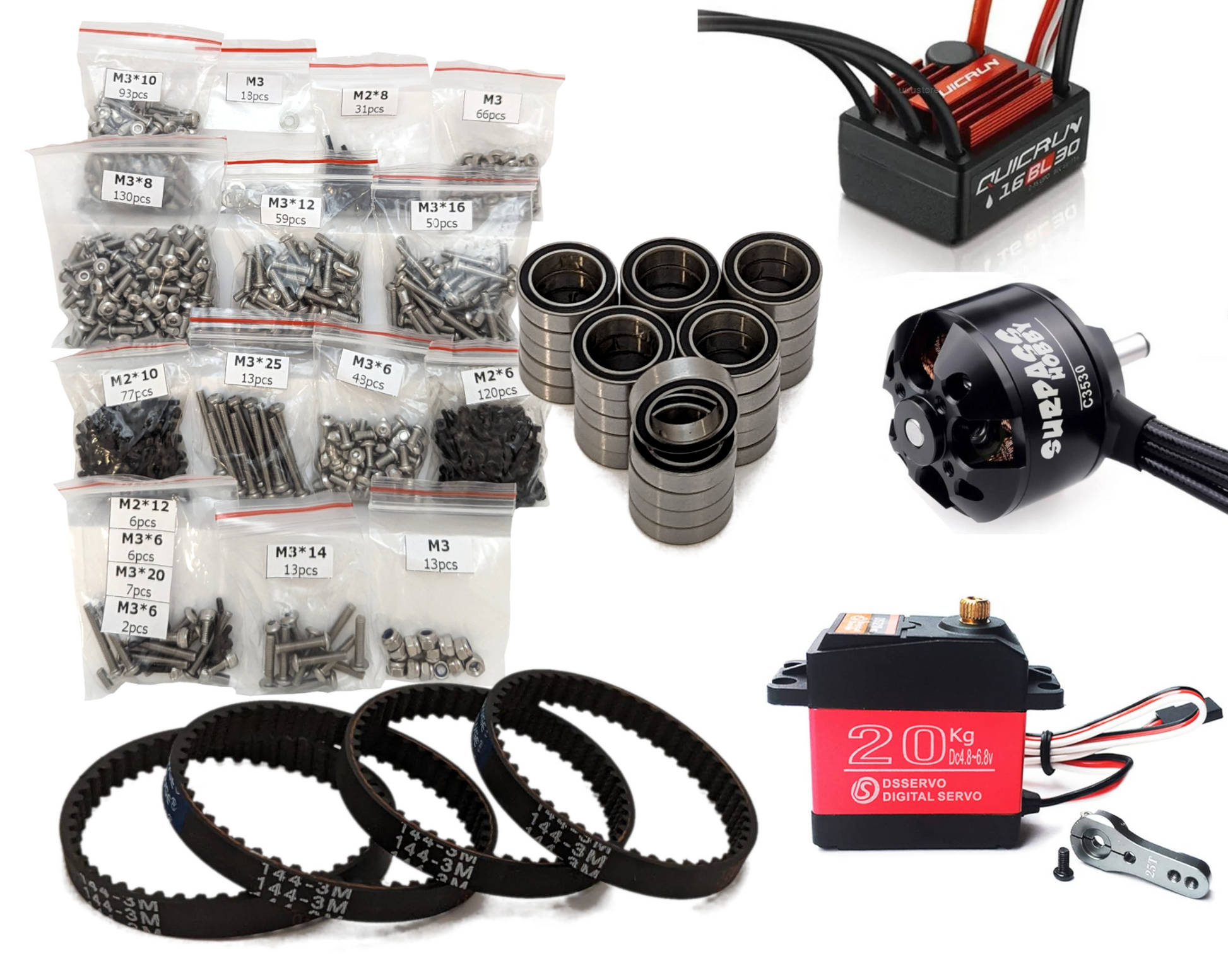

Each kit that includes Motor+ESC will include one C3530 1100KV Brushless Outrunner Motor by Surpass Hobby and one 16BL30 30A Brushless ESC by Hobbywing. This is the recommended brushless motor and ESC combination for the 3DSets Max Models.
Looking for the build files? Find them at www.3DSets.com.
Looking for shocks? Check out our selection here.
OUR KITS DO NOT COME WITH THE 3D PRINTED PLASTIC PARTS TO BUILD THE MODEL. YOU NEED TO 3D PRINT THOSE YOURSELF. OUR KITS ONLY COME WITH THE PARTS LISTED ABOVE TO ASSIST YOU IN YOUR BUILD AND OTHER PARTS WILL LIKELY BE REQUIRED TO COMPLETE YOUR BUILD.
