3DSets Bamboo Build Kits
3DSets Bamboo Build Kits
Build Kits for the 3DSets Bamboo 3D printed Toyota Landcruiser FJ40 RC Truck. We have various different build kits available including:

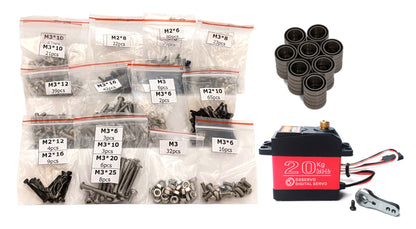

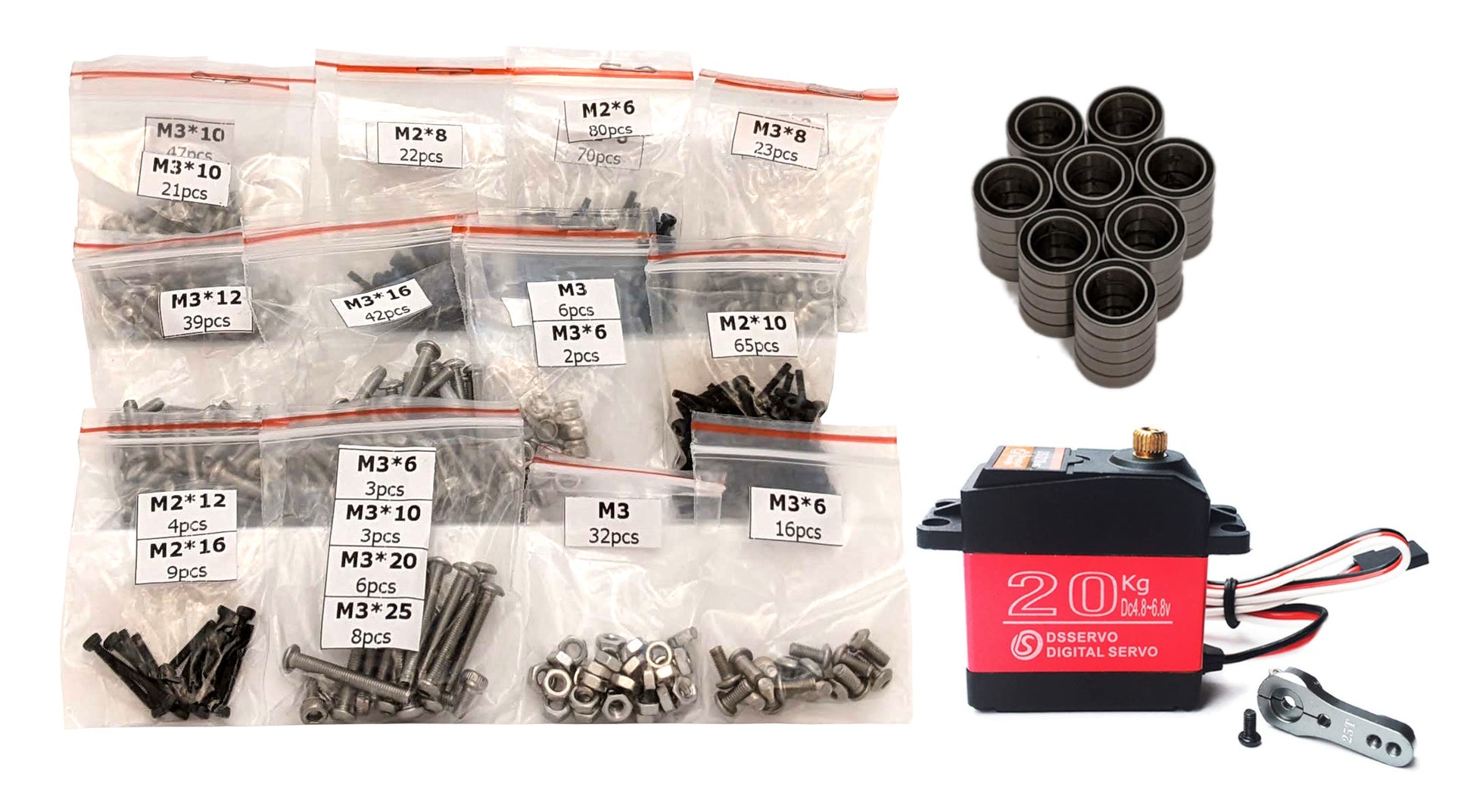

- Fastener Only Kit

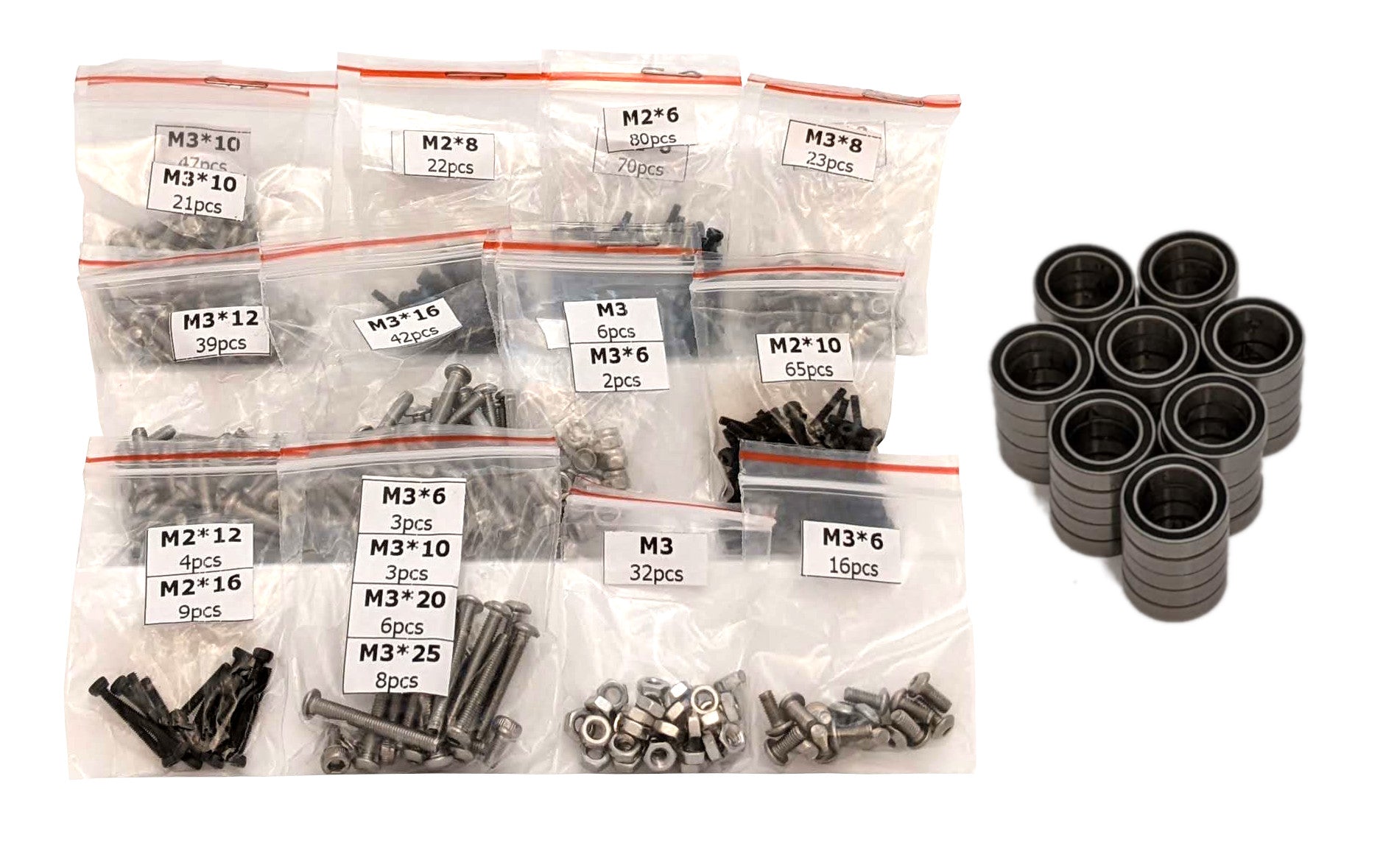

- Fastener and Bearing Kit
- Fastener/Bearing/Servo Kit

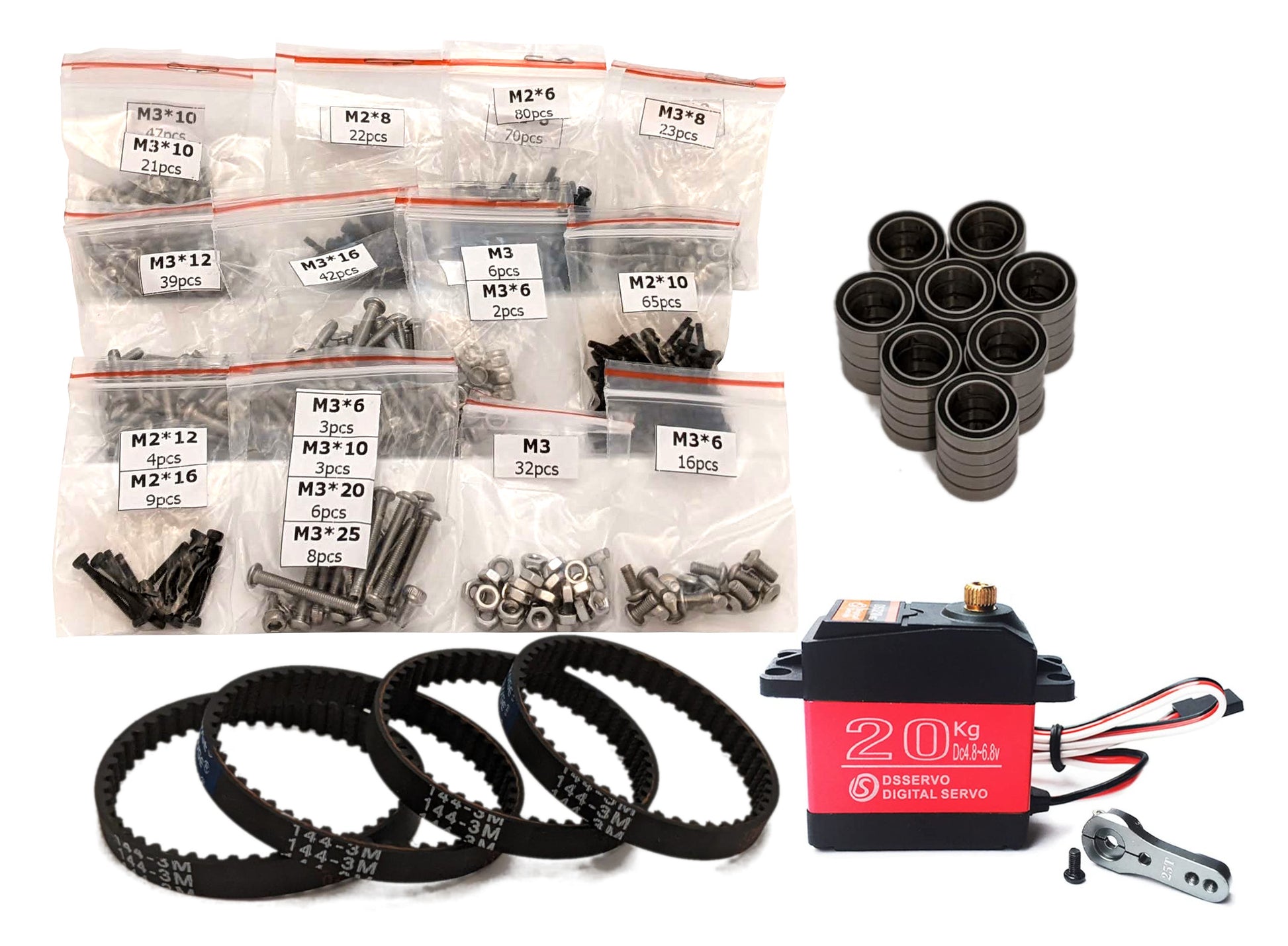

- Fastener/Bearing/Servo/Belts Kit

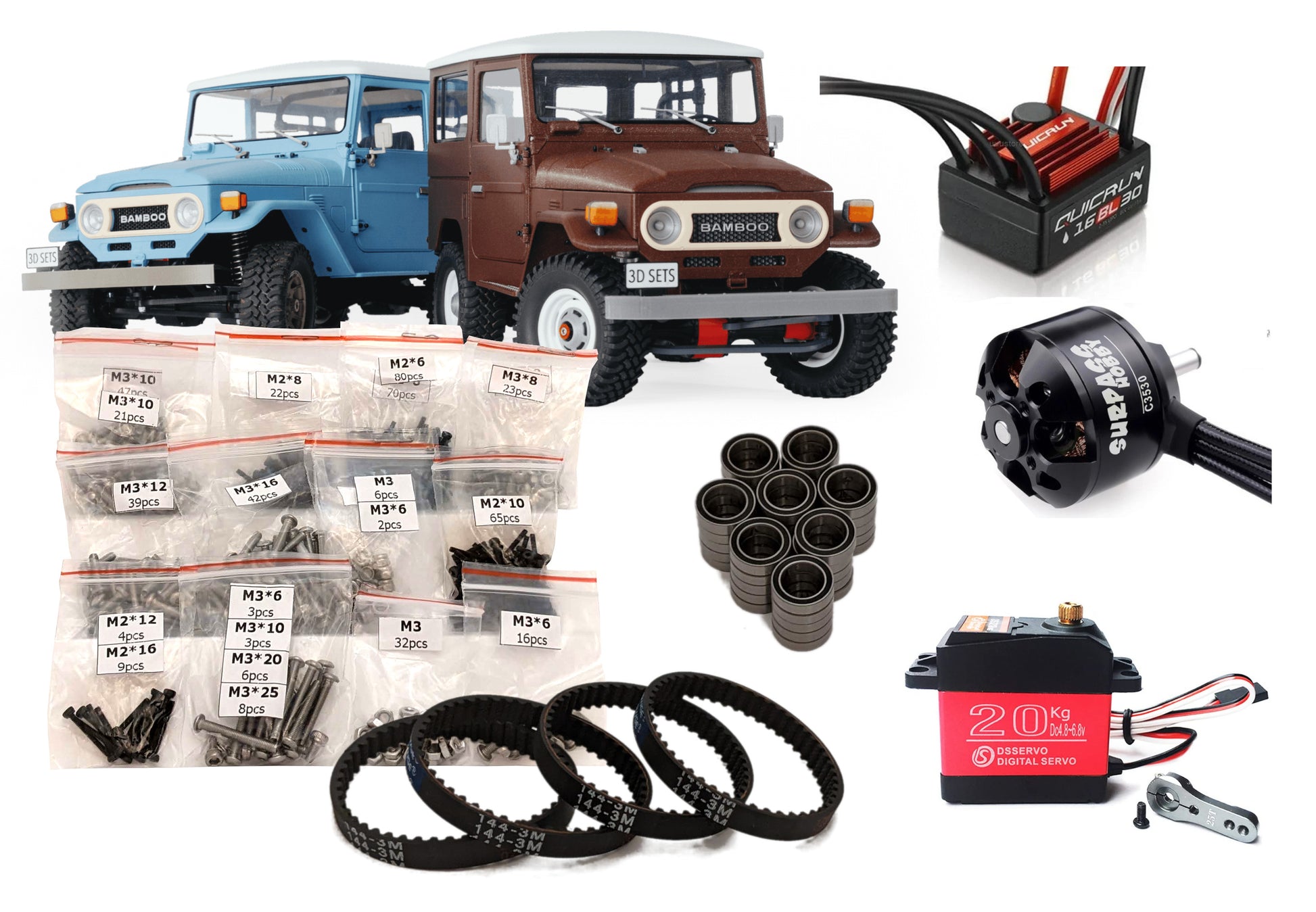

- Fastener/Bearing/Servo/Belts/Motor+ESC Kit
Kits include all necessary fasteners for the model according to the designers build guide. Our kits include all the fasteners required to build whichever Bamboo model you would like: model 9 (original 4x4), model 10 (hardtop), model 12 (pickup), or model 13 (winch truck). Our kits come with the extra screws required to build the belt or geared transmission and whichever Bamboo wheelset option you prefer.
Each Fastener Kit contains over 500 metric fastener parts with extras so you don't need to worry about being left short. The M2 screws in our 3DSets RC kits are black class 12.9 steel as they are used mostly for the attachment of body parts and they blend well with the design. All m3 screws which are used mostly for the chassis and suspension are 304 stainless steel for enhanced corrosion resistance. Sockets on all screws including button head (round/pan) and socket (cylindrical) screws are hexagonal.
Each Bearing Kit contains 40 high speed 10x15x4mm rubber sealed bearings (6700rs) with Z2 precision rating for low noise. The model requires a maximum of 38 bearings depending on motor and differential set-up but we include two extra bearings free of charge just in case.
For kits that include a Servo we also include one 20KG Digital Servo (DS3218) with metal gears and an aluminum metal servo arm which is perfect for the Bamboo model.
Each kit that includes Belts will also include 4 timing belts to fit the 3D Sets Bamboo brushless drivetrain. This includes 4 HTD 144-3M-06 Belts (144mm long, 3mm teeth distance, 6mm wide). Belts are constructed out of Neoprene rubber with a fiberglass core.
Each kit that includes Motor+ESC will include one C3530 1100KV Brushless Outrunner Motor by Surpass Hobby and one 16BL30 30A Brushless ESC by Hobbywing. This is the recommended brushless motor and ESC combination for the 3DSets Bamboo.
Looking for the build files? Find them at www.3DSets.com.
OUR KITS DO NOT COME WITH THE 3D PRINTED PLASTIC PARTS TO BUILD THE MODEL. YOU NEED TO 3D PRINT THOSE YOURSELF. OUR KITS ONLY COME WITH THE PARTS LISTED ABOVE TO ASSIST YOU IN YOUR BUILD AND OTHER PARTS WILL LIKELY BE REQUIRED TO COMPLETE YOUR BUILD.
